Front Wheel

Triumph TF 250-C · 2026 · Brakes & Wheels · 18 parts · 5 on the shelf in Brea

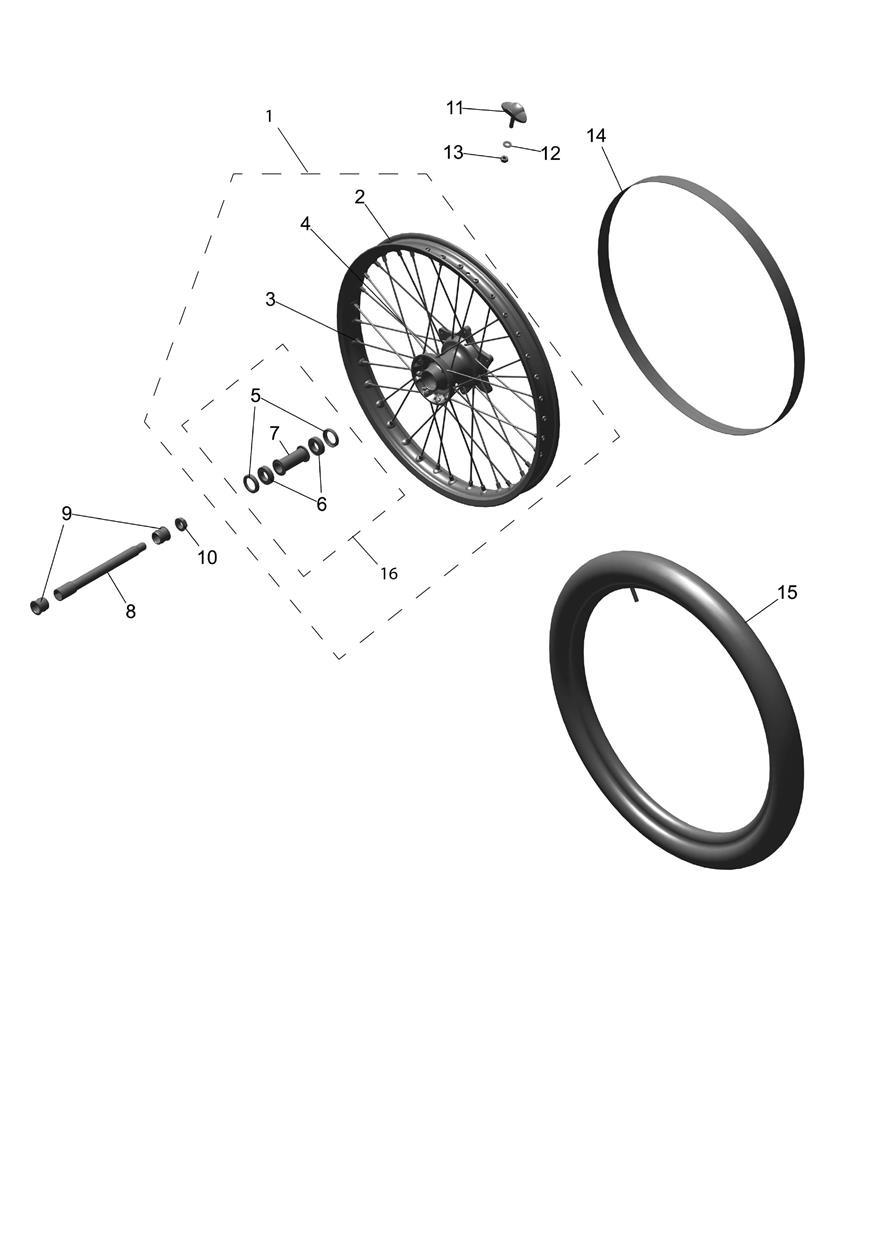

Exploded parts diagram — Front Wheel, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2009269
Front Wheel Assy, 1.6 x 2.1
Qty 1
$614.65
Available
2
T2005069
Rim
Qty 1
Low stock at Triumph
$626.76
Limited availability Shipping quote or pickup
3
T2005037
Nipple, Aluminium, Spoke
Qty 36
Low stock at Triumph
$3.32
Limited availability
4
T2000712
Spoke, Wire, 224mm
Qty 36
$4.91
In stock in Brea
5
T3600315
Oil Seal, 26 38 x 7
Qty 2
$6.21
In stock in Brea
6
T3800267
Bearing, Ball, 20x 37 x 9
Qty 2
$22.35
Available
7
T2000694
Spacer, 20 x 25.8 x 70
Qty 1
$18.08
Available
8
T2000692
Spindle, Front Wheel
Qty 1
$74.00
Available
9
T2000893
Spacer, Wheel
Qty 2
$16.45
In stock in Brea
10
T3350165
Nut, M16 x 1.5
Qty 1
$1.99
In stock in Brea
11
T2000880
Rim Lock, 1.6 Inch
Qty 1
$13.06
Available
12
T3550405
Washer, M8 x 17 x 1.6
Qty 1
$1.99
Available
13
T3350303
Nut, M8, Silver
Qty 1
$1.99
Available
14
T2000968
Rim Band, 21 Inch
Qty 1
$10.42
Available
15
T2000845
Inner Tube, 21 Inch
Qty 1
$41.11
Available
16
T2009258
Hub, Sub Assy
Qty 1
$139.77
Available Shipping quote or pickup
17
T2004251
Spoke Kit, Front Wheel
Qty 1
Comprises 1 x nipple and 1 x spoke
$9.18
Available
18
T2004252
Bearing Kit, Front Wheel
Qty 1
Comprises all items 5, 6, 7 & 9
$48.00
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
