Clutch Controls

Triumph TF 250-C · 2026 · Engine · 18 parts · 5 on the shelf in Brea

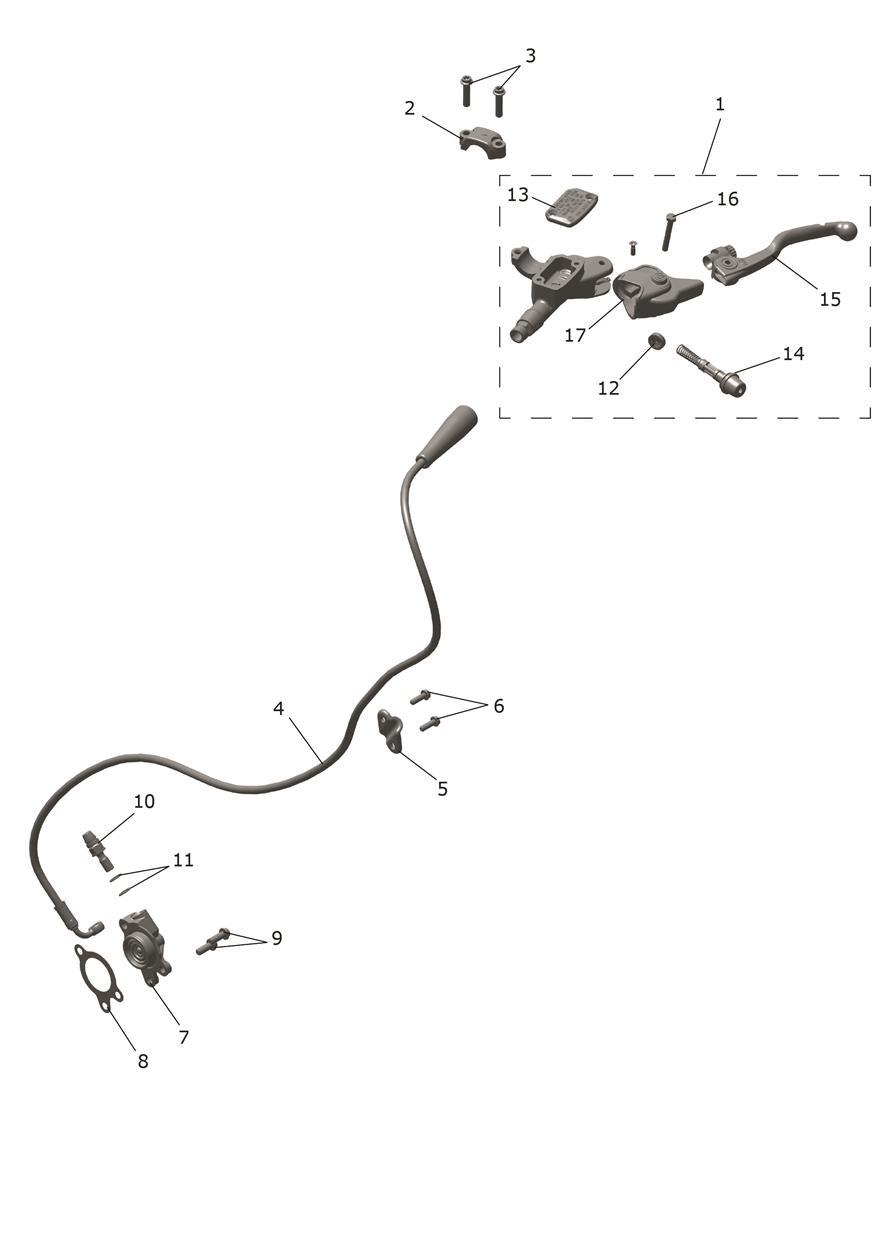

Exploded parts diagram — Clutch Controls, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2045023
Clutch Master Cylinder, 10mm Dia
Qty 1
$173.41
Available
2
T2022285
Clamp, Master Cylinder
Qty 1
$10.38
Available
3
T3200664
Bolt, TX, Lghtd, M6 x 25, Slv
Qty 2
$3.29
In stock in Brea
4
T2043820
Clutch Hose Assembly
Qty 1
$65.22
In stock in Brea
5
T2043994
Guide, Clutch Hose
Qty 1
$2.27
Available
6
T3200553
Bolt, TX, M5 x 16, Enc
Qty 2
$1.99
Available
7
T2045077
Slave Cylinder, Clutch
Qty 1
$106.88
Available
8
T2043821
Gasket, Clutch Slave Cylinder
Qty 1
$1.99
In stock in Brea
9
T3200662
Bolt, TX, Lghtd, M6 x 16, Slv
Qty 2
$2.47
Available
10
T2043805
Banjo Bolt, Bleed, M8 x 18
Qty 1
$7.81
Available
11
T3550375
Washer, CU, 8.5 x 12 x 1
Qty 2
$1.99
In stock in Brea
12
T2022386
Kit, Anti-Bubble Kit
Qty 1
$21.37
Available
13
T2043714
Reservoir Cap
Qty 1
$24.49
Available
14
T2044149
Kit, M/Cyl Piston
Qty 1
Low stock at Triumph
$57.56
Limited availability
15
T2043708
Clutch Lever
Qty 1
$57.00
In stock in Brea
16
T2043724
Lever Pin
Qty 1
Low stock at Triumph
$24.67
Limited availability
17
T2043754
Dust Cover
Qty 1
$23.69
Available
18
T2043757
Push Rod
Qty 1
Not Illustrated
$41.11
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
