Handlebars, Upper Yoke & Mirrors

Triumph TF 250-C · 2026 · Chassis & Suspension · 25 parts · 7 on the shelf in Brea

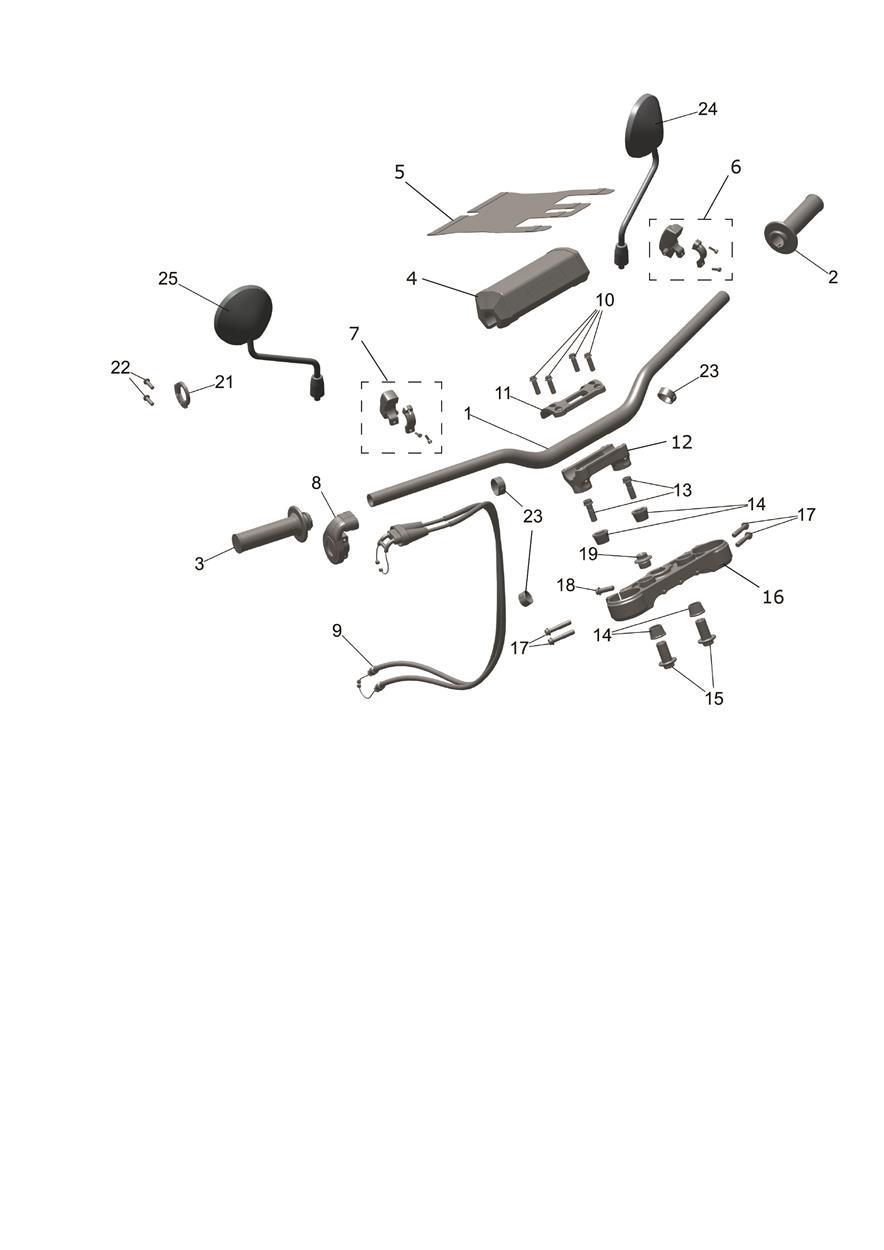

Exploded parts diagram — Handlebars, Upper Yoke & Mirrors, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2044788
Handlebar, EVO
Qty 1
$89.00
Available Shipping quote or pickup
2
T2043246
Grip Assy, LHS
Qty 1
$27.51
In stock in Brea
3
T2043232
Grip Assy, RHS
Qty 1
$15.22
Available
4
T2044808
Pad, Handlebar, Foam
Qty 1
$39.91
Available
5
T2044809
Cover, Pad, Handlebar
Qty 1
$16.45
Available
6
T2508286
Switchcube, Mode, LH
Qty 1
$127.72
In stock in Brea
7
T2508408
Switchcube, RH
Qty 1
$113.08
Available
8
T2046694
Housing, Throttle Cable
Qty 1
$35.61
Available
9
T2045276
Throttle Cable Assy
Qty 1
$75.61
In stock in Brea
10
T3200881
Bolt, TX, Lghtd, M8 x 25, Slv
Qty 4
$3.29
In stock in Brea
11
T2044314
Handlebar Clamp, Upper
Qty 1
$59.07
In stock in Brea Shipping quote or pickup
12
T2044920
Handlebar Clamp, Lower, Linked
Qty 1
$84.33
Available Shipping quote or pickup
13
T3201101
Bolt, TX, M10 x 30, Enc
Qty 2
$4.12
Available
14
T2043230
Rubber, AV
Qty 4
$1.99
Available
15
T2049349
Sleeve, AV
Qty 2
$33.99
Available
16
T2044585
Upper Yoke
Qty 1
$279.55
Available
17
T3200886
Bolt, TX, Lghtd, M8 x 40, Slv
Qty 4
$3.29
Available
18
T3200882
Bolt, TX, Lghtd, M8 x 25, Enc
Qty 1
$2.47
Available
19
T3350850
Bolt, Flgd, M20 x 1.5
Qty 1
$10.45
Available
21
T2043618
Cam, Throttle Cable
Qty 1
$4.79
In stock in Brea
22
T3200663
Bolt, TX, Lghtd, M6 x 20, Slv
Qty 2
$2.47
Available
23
T3700212
Band, Rubber
Qty 3
$3.04
Available
24
T2060210
Mirror Assembly, RH
Qty 1
$36.60
Available
25
T2060209
Mirror Assembly, LH
Qty 1
$36.60
Available
26
T2044357
Handlebar Grip Assembly Kit
Qty 1
Contains items 2, 3 & 21
$50.59
In stock in Brea Shipping quote or pickup

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
