Seats

Triumph TF 250-C · 2026 · Bodywork · 4 parts · 1 on the shelf in Brea

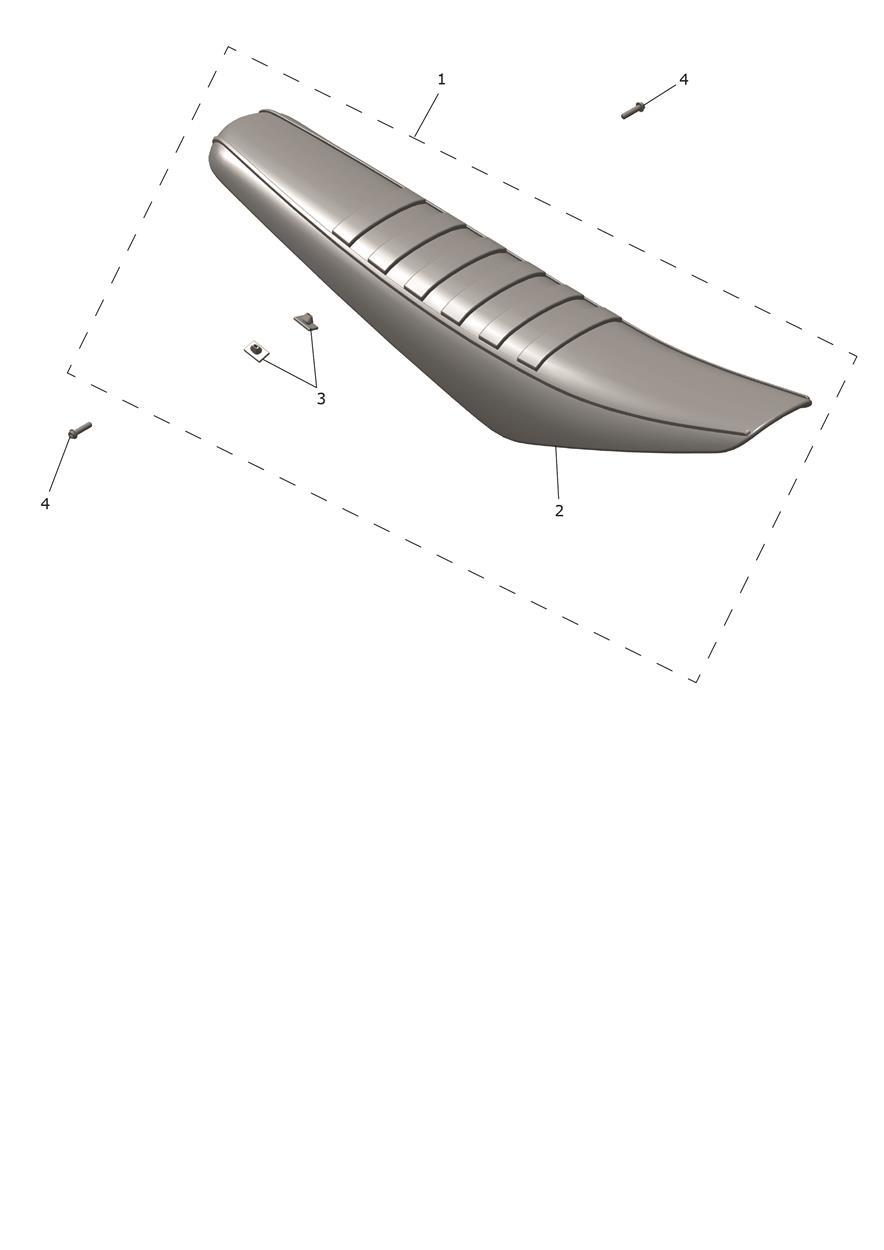

Exploded parts diagram — Seats, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2314567
Gripper Seat Assembly
Qty 1
$271.32
Available
2
A9700557
Gripper Seat Cover
Qty 1
No longer supplied by Triumph → replaced by A9700664
$84.00
Not on our shelf Ask the parts desk
3
T2312150
Rubber Foot
Qty 2
$1.99
Available
4
T3200664
Bolt, TX, Lghtd, M6 x 25, Slv
Qty 2
$3.29
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.

Southern California Motorcycles, 515 W Lambert Rd, Brea, CA 92821 · 714-256-6700

Triumph supply checked Oct 28, 2026 · Brea shelf Oct 29, 2026.
