Gasket Kits

Triumph TF 250-C · 2026 · Service · 35 parts · 14 on the shelf in Brea

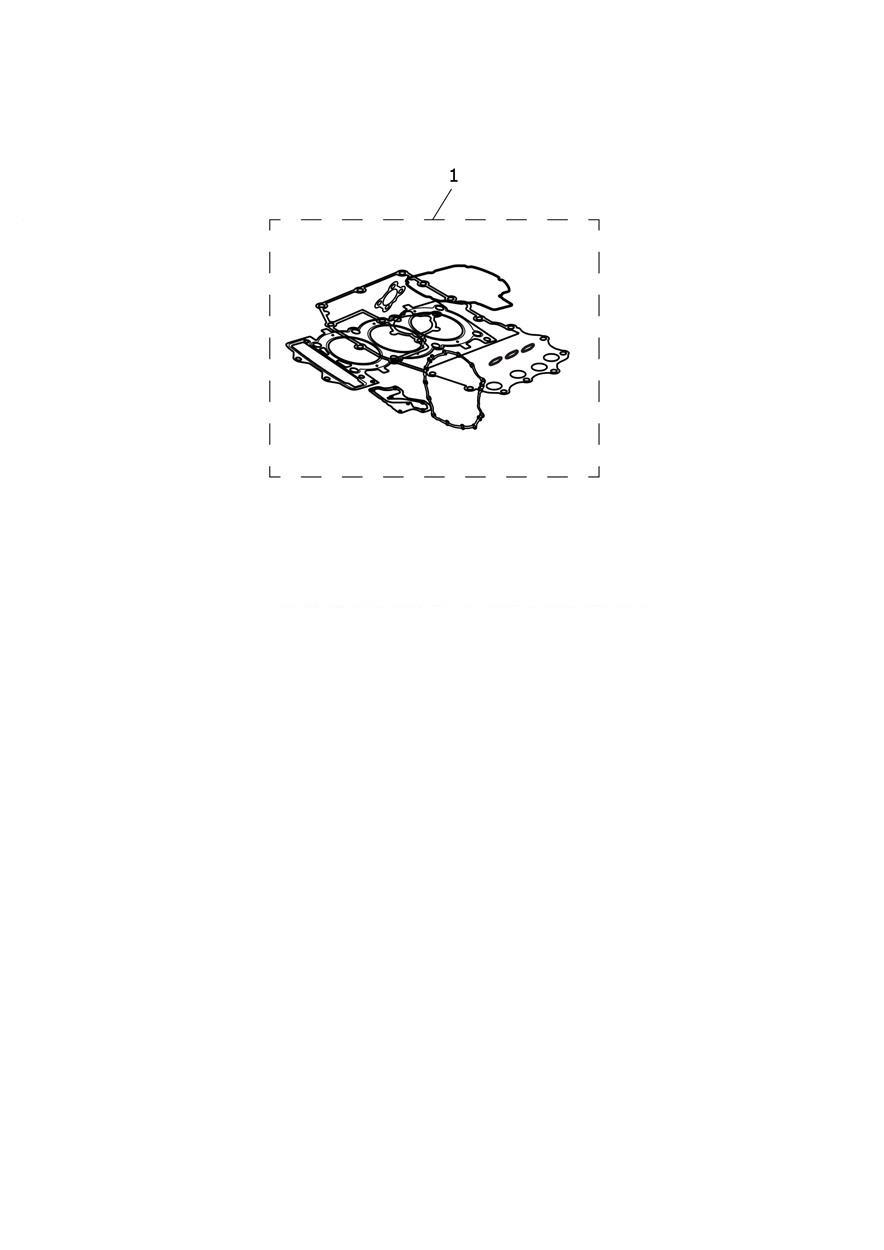

Exploded parts diagram — Gasket Kits, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1160533
Engine Gasket Kit, Full
Qty 1
$179.27
In stock in Brea
2
T1150498
Gasket, Cyl/Hd, D78.4, Layer
Qty 1
$67.78
In stock in Brea
3
T1150476
Gasket, Exhaust Flange, D38
Qty 1
$4.22
In stock in Brea
4
T3601181
O Ring, ID 23 x 0.5
Qty 2
$1.99
Available
5
T3550546
Washer, Cu, OD 16 x ID 10.2/
Qty 2
$1.99
Available
6
T1130710
Oil Seal, Valve Stem, 5mm
Qty 4
$9.87
In stock in Brea
7
T3600249
O Ring, ID10 x 1
Qty 1
Low stock at Triumph
$1.99
Limited availability
8
T3600172
O Ring
Qty 1
$3.35
Available
9
T3350319
Washer, CU, 24 x 28 x 2.4
Qty 1
$5.60
Available
10
T1105069
Seal, Rotary SC 40 x 55 x 6
Qty 1
$10.34
Available
11
T1161656
Gasket, Cylinder
Qty 1
$14.85
In stock in Brea
12
T3600265
Seal, 14 x 24 x 6
Qty 1
$5.15
Available
13
T3600288
O Ring, 25 x 1.78
Qty 1
$1.99
Available
14
T3600289
Seal, Metal Cased, 32 x 45 x 7
Qty 1
$16.45
Available
15
T3600266
O Ring, ID3.5 x 2
Qty 1
$1.99
Available
16
T3600270
O Ring, ID33.05 x 1.78
Qty 1
$1.99
Available
17
T3600271
O Ring, ID44 x 2
Qty 1
Low stock at Triumph
$1.99
Limited availability
18
T3600272
O Ring, ID12.5 x 1.5
Qty 4
$1.99
Available
19
T3600273
O Ring, ID17.17 x 1.78
Qty 2
$1.99
Available
20
T3550547
Washer, Cu, OD19 x ID14.2
Qty 1
$4.00
Available
21
T3550571
Washer, Cu, OD 16 x ID 12.5
Qty 2
$4.70
Available
22
T1260309
Seal, Cam Cover, Screw, Twin Lip
Qty 3
$5.39
In stock in Brea
23
T1260887
Gasket, Cam Cover
Qty 1
$10.57
In stock in Brea
24
T1261258
Seal, Tube, Spark Plug
Qty 1
$4.39
In stock in Brea
25
T3600163
O Ring, ID 19 x 3
Qty 1
$11.68
Available
26
T1269041
Gasket, Alternator Cover
Qty 1
$8.48
In stock in Brea
27
T3600287
O Ring, 30 x 2.5
Qty 1
$2.87
Available
28
T1261228
Gasket, Case, RH
Qty 1
$14.16
In stock in Brea
29
T1261266
Seal, Formed, Clutch Cover
Qty 1
$4.79
In stock in Brea
30
T2101307
Gasket, Water Pump
Qty 1
$3.43
In stock in Brea
31
T3600317
Seal, Rotary, 14 x 24 x 5
Qty 1
$4.12
Available
32
T3550375
Washer, CU, 8.5 x 12 x 1
Qty 1
$1.99
In stock in Brea
33
T3550542
Washer, Cu, OD12.5 x Id6.4
Qty 2
$1.99
In stock in Brea
34
T3600277
Seal, Oil, 72NBR902, 15 x 30 x 4.5
Qty 2
$10.10
Available
35
T3600259
O Ring, 9.0 x 1.5
Qty 2
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
