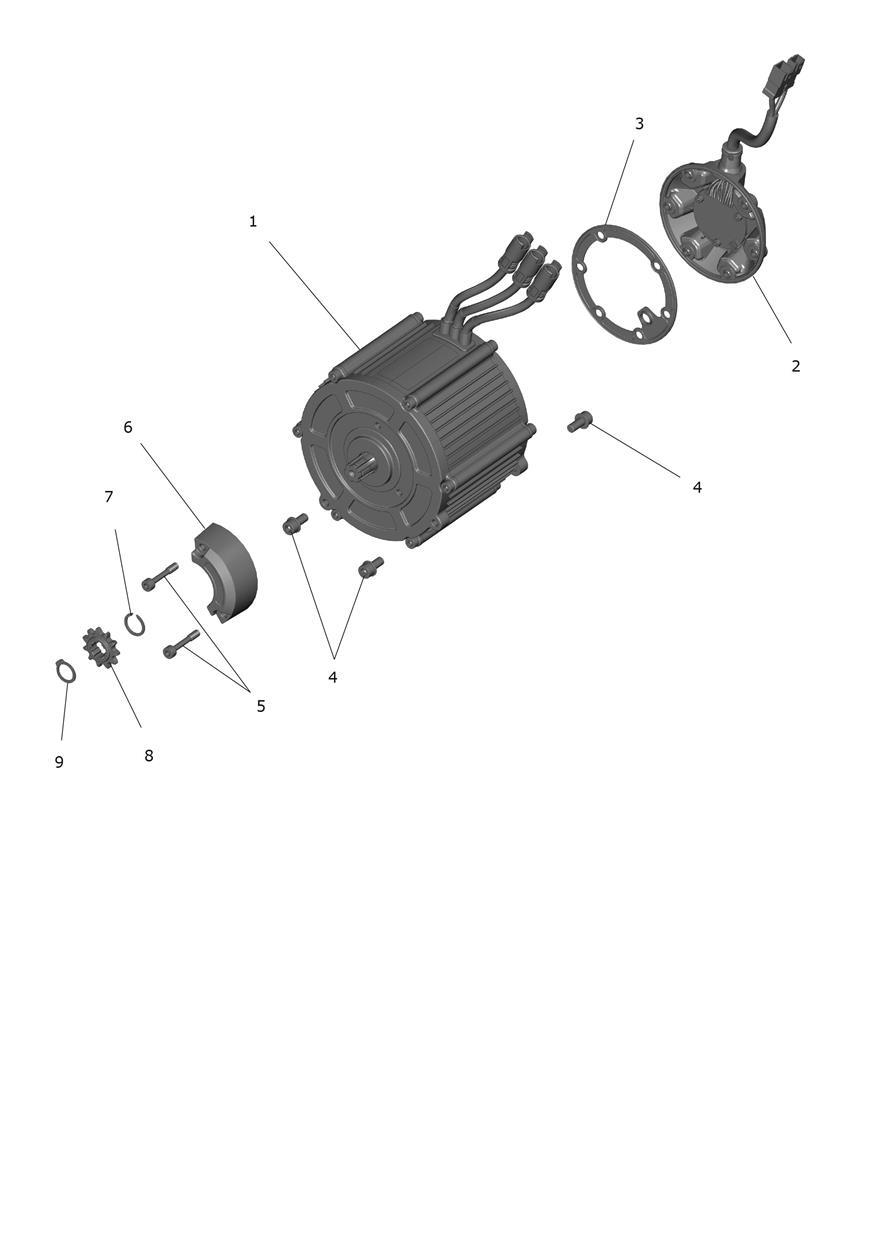

Motor
Triumph OSET TXP-24 · 2023 · Accessories · 9 parts
Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
2
T5100027
Encoder Assy, Gasket Type
Qty 1
Please see Service Bulletin 'OSET Bulletin OB-005 - TXP Encoder Replacement' before ordering.
Backordered at Triumph · we’ll confirm the ship date after you order
$13.07
On backorder
3
T5100026
Gasket, Encoder, Mldg, Blk
Qty 1
Please see Service Bulletin 'OSET Bulletin OB-005 - TXP Encoder Replacement' before ordering.
$10.30
Available
4
TOS30069
Bolt,M6X14Mm,Cap+Wash,10.9,Blk
Qty 4
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
9
TOS30063
Snap Ring, M2400-15, Steel
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
