Front Forks & Lower Yoke

Triumph OSET TXP-24 · 2023 · Chassis & Suspension · 15 parts · 1 on the shelf in Brea

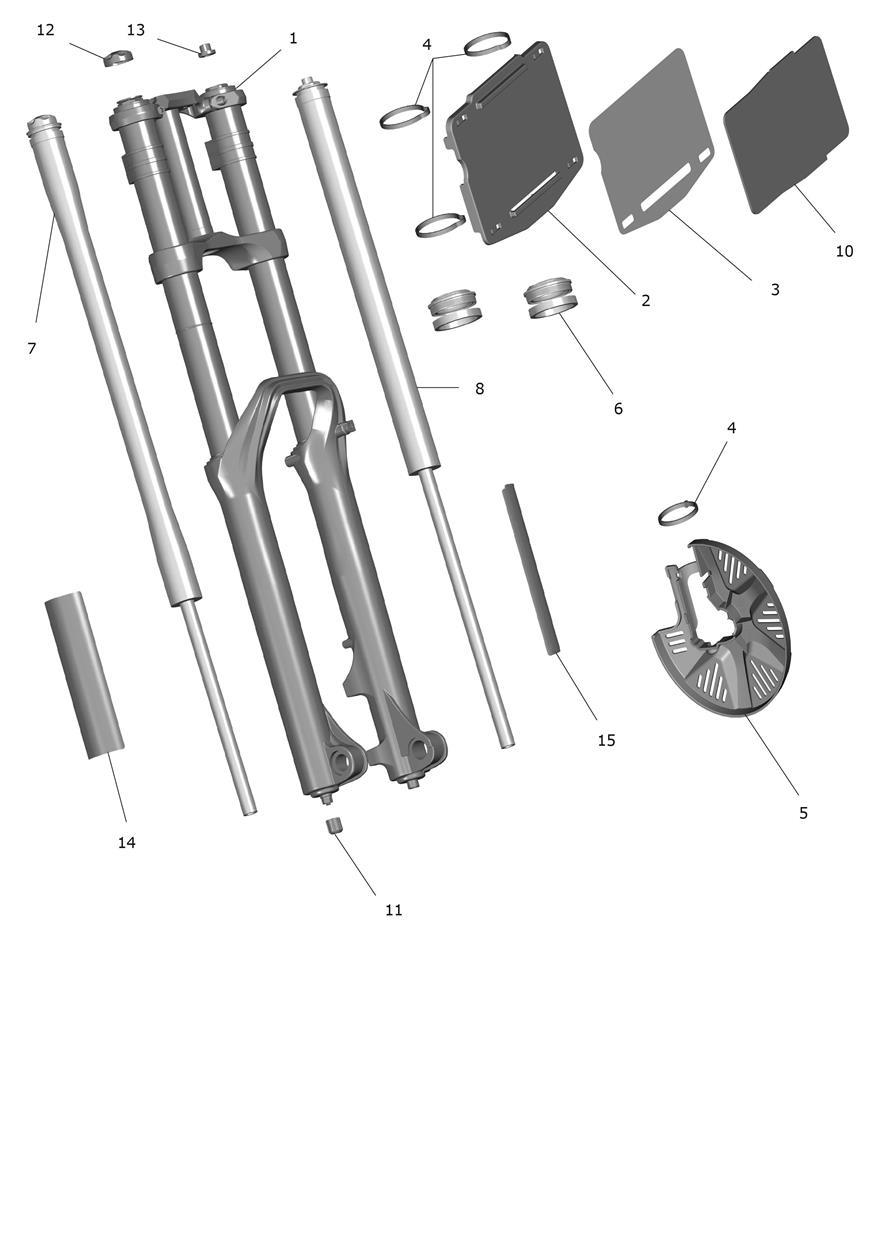

Exploded parts diagram — Front Forks & Lower Yoke, Triumph OSET TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2044296
Forks, 570 X 160Mm, Boost, Blk
Qty 1
$720.00
Available Shipping quote or pickup
2
T2044315
Number Board, Mldg, Lrg, Black
Qty 1
$16.63
Available Shipping quote or pickup
3
T2044327
Number Board Cover, Clear
Qty 1
$17.52
Available Shipping quote or pickup
4
T3700016
Cable Tie, 370 Long
Qty 5
$1.99
In stock in Brea
5
T2044328
Disc Guard, Fr, 203, Mldg, Blk
Qty 1
$20.40
Available
6
T2049032
Forks Service Kit, RST, Tundra
Qty 1
$23.12
Available
7
T2049034
Fork Damper Unit, RST Tundra
Qty 1
$161.46
Available
8
T2049036
Fork Spring Unit, RST Tundra
Qty 1
$151.03
Available
9
T2000829
Axle, Front, 20X110Mm, Black
Qty 1
$28.65
Available
10
T2044316
Decal, Numberboard, Lrg, Red
Qty 1
Backordered at Triumph · expected Nov 6
$5.33
On backorder
11
T2044652
Fork Rebound Dial, Tundra
Qty 1
$31.25
Available
12
T2044653
Fork Compression Dial, Tundra
Qty 1
$31.25
Available
13
T2044654
Fork Valve Cap, RST
Qty 1
$8.43
Available
14
T2044730
Decal, Fork Lower, TXP-24, Rhs
Qty 1
$10.82
Available
15
T2044731
Decal, Fork Lower, TXP-24, Lhs
Qty 1
$10.82
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
