Swinging Arm

Triumph OSET TXP-24 · 2023 · Chassis & Suspension · 24 parts · 1 on the shelf in Brea

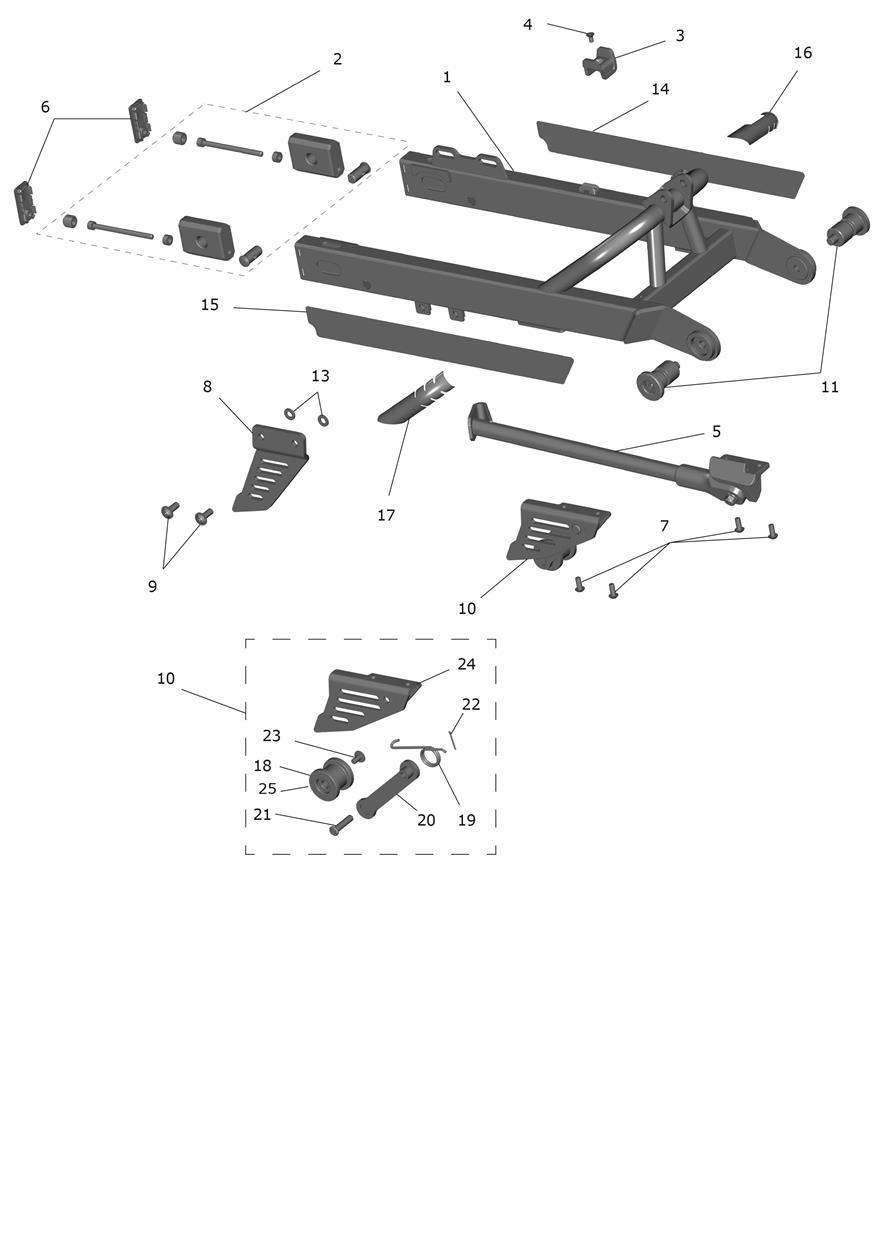

Exploded parts diagram — Swinging Arm, Triumph OSET TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2050822
Swingarm, Txp-24, Fab, Blk
Qty 1
$98.96
Available Shipping quote or pickup
2
T2050828
Dropout Slider Assy
Qty 1
$26.03
Available
3
T2050827
Chain Guide, Moulded, Black
Qty 1
$1.99
Available
4
TOS30007
Bolt, M4X8Mm, Csk, SS A2
Qty 1
$1.99
Available
5
T2050831
Side Stand Assy, Lrg, Black
Qty 1
$20.50
Available Shipping quote or pickup
6
T2050829
End Cap Swingarm,20X40Mm,Mldg
Qty 2
$4.08
Available
7
TOS30044
Bolt, M5X12Mm, Butt, 10.9, Blk
Qty 4
$1.99
Available
8
T2050826
Sprocket Guard, Rear, Lrg, Blk
Qty 1
$19.33
Available
9
TOS30003
Bolt, M6X16Mm, Flgd, 10.9, Blk
Qty 2
$1.99
Available
10
T2050874
Chain Tensioner, Assy
Qty 1
$28.00
In stock in Brea
11
T2050825
Swingarm Axle, Assy, Blk
Qty 1
$21.20
Available
13
TOS30006
Washer, M6, Form A, Steel, Blk
Qty 2
$1.99
Available
14
T2050823
Decal, Swingarm, Red, Lh
Qty 1
$26.18
Available
15
T2050824
Decal, Swingarm, Red, Rh
Qty 1
$26.18
Available
16
T2050844
Protct Decal, Txp-24, Sa, Lhs
Qty 1
$3.68
Available
17
T2050843
Protct Decal, Txp-24, Sa, Rhs
Qty 1
$3.68
Available
18
T2059912
Chain Tensioner Roller Assy
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$36.46
On backorder
19
T2050940
Spring, Chain Tensioner, SS
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
20
T2050875
Arm, Chain Tensioner, Stl, Blk
Qty 1
$28.00
Available
21
TOS30049
Clevis Pin, 6X27Mm
Qty 1
$5.62
Available
22
TOS30048
Split Pin, 1.6X16Mm
Qty 1
$3.12
Available
23
TOS30021
Bolt, M5X10Mm, Flgd, 10.9, Blk
Qty 1
$1.99
Available
24
T2050877
Mount, Chain Tensioner, Blk
Qty 1
$10.82
Available
25
TOS30058
Bearing, RS, 8X16X5MM
Qty 2
Availability unconfirmed
No longer available
Not on our shelf Ask the parts desk

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
