Rear Wheel

Triumph OSET TXP-24 · 2023 · Brakes & Wheels · 25 parts

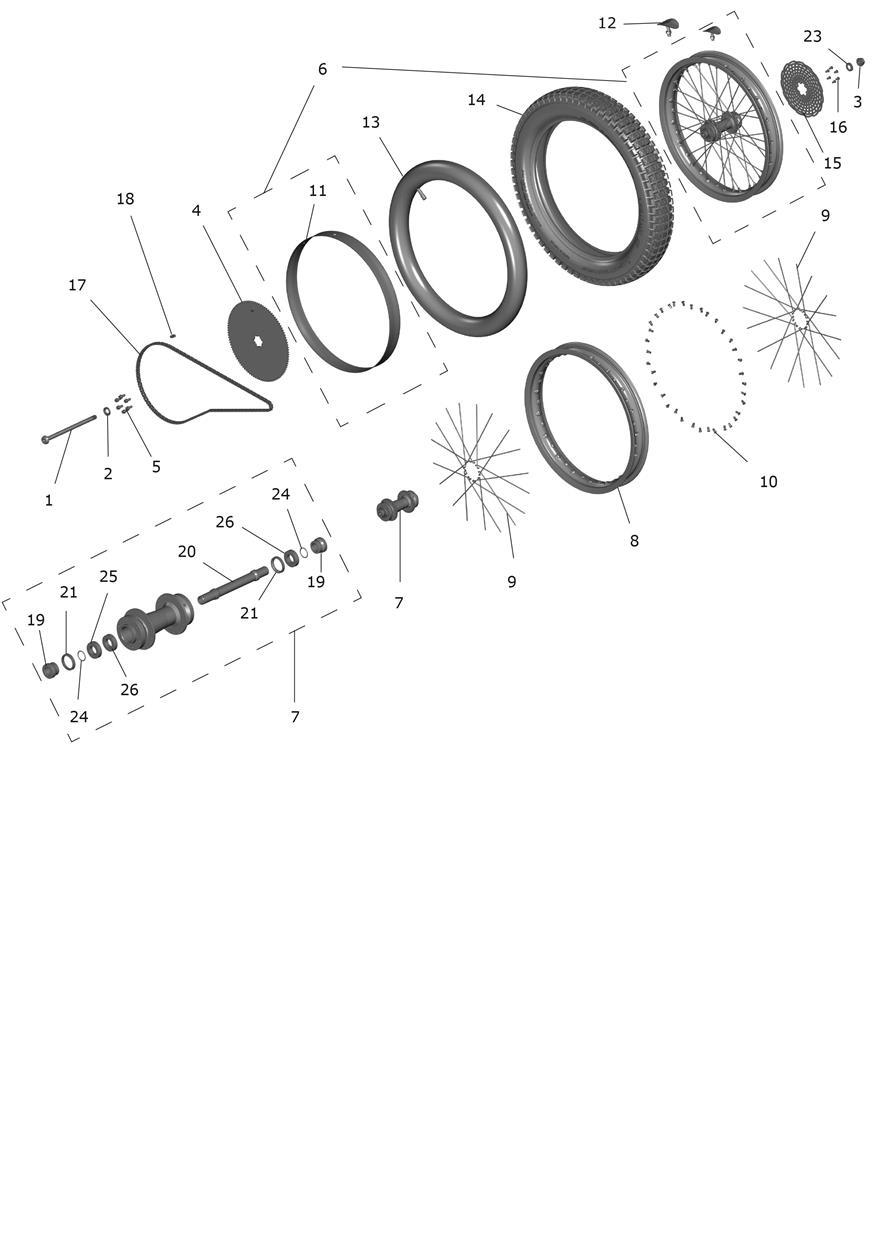

Exploded parts diagram — Rear Wheel, Triumph OSET TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2012029
Axle, Rear, 12X210Mm, Alu, Blk
Qty 1
$25.00
Available
2
TOS30014
Washer Cup, Rr Axle, M12, Blk
Qty 2
$5.73
Available
3
TOS30015
Nut,Axle,M12X1.50,Flgd,Alu,Blk
Qty 2
$7.60
Available
4
T2014206
Rear Sprocket,102T, Alu, Black
Qty 1
$51.83
Available
5
TOS30005
Bolt,M6X16Mm,Cap+Wash,10.9,Blk
Qty 6
$1.99
Available
6
T2011382
Rr Wheel & Rim Tape, 17X1.85"
Qty 1
Includes Rim Tape (no.11).
$258.68
Available
7
T2011243
Hub, Rear, 12X152Mm, Alu, Blk
Qty 1
Backordered at Triumph · no date yet
$106.25
On backorder Shipping quote or pickup
8
T2014318
Rim, 17X1.85'' Mc, 36H, Black
Qty 1
Backordered at Triumph · no date yet
$137.50
On backorder Shipping quote or pickup
9
T2011308
Spoke, 12G X 185Mm, Black
Qty 36
$1.99
Available
10
T2009933
Nipple, 12G X 13Mm, Chrome
Qty 36
$1.99
Available
11
T2014317
Rim Tape, 17''X50Mm, Mc
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$5.43
On backorder
12
T2014313
Rim Lock, 1.85'' Rims
Qty 1
$1.99
Available
13
T2014312
Tube, 17X3.50'' Mc
Qty 1
$20.00
Available
14
T2014311
Tyre R, Max Gripper, 17X3.50''
Qty 1
$87.00
Available Shipping quote or pickup
15
T2022745
Brk Rotor, Solid, 180Mm
Qty 1
$19.50
Available
16
TOS30013
Bolt, M5X10Mm, Torx, 10.9, Blk
Qty 6
$1.99
Available
17
T2014077
Chain, #219, 12Mm, 170 Links, Gold
Qty 1
$40.71
Available
18
T2014076
Masterlink, #219, 12Mm, Gold
Qty 1
$12.50
Available
19
T2011294
Hub Spacer, Rear, Alu, Blk
Qty 2
$13.00
Available
20
T2011291
Axle, Rr, Bearing, 12 X 151Mm, Alu, Blk
Qty 1
$56.66
Available
21
T2011288
Axial Seal, 22X28X4Mm, HM1 R
Qty 2
$18.75
Available
23
TOS30015
Nut,Axle,M12X1.50,Flgd,Alu,Blk
Qty 1
$7.60
Available
24
TOS30025
O-Ring, 15X1.5Mm
Qty 2
$1.99
Available
25
T2011257
Bearing RS, 15X28X7Mm
Qty 1
$9.12
Available
26
T2011510
Bearing, RS, 15X28X7Mm
Qty 2
$9.12
Available
