Tank Cover

Triumph OSET TXP-24 · 2023 · Accessories · 4 parts

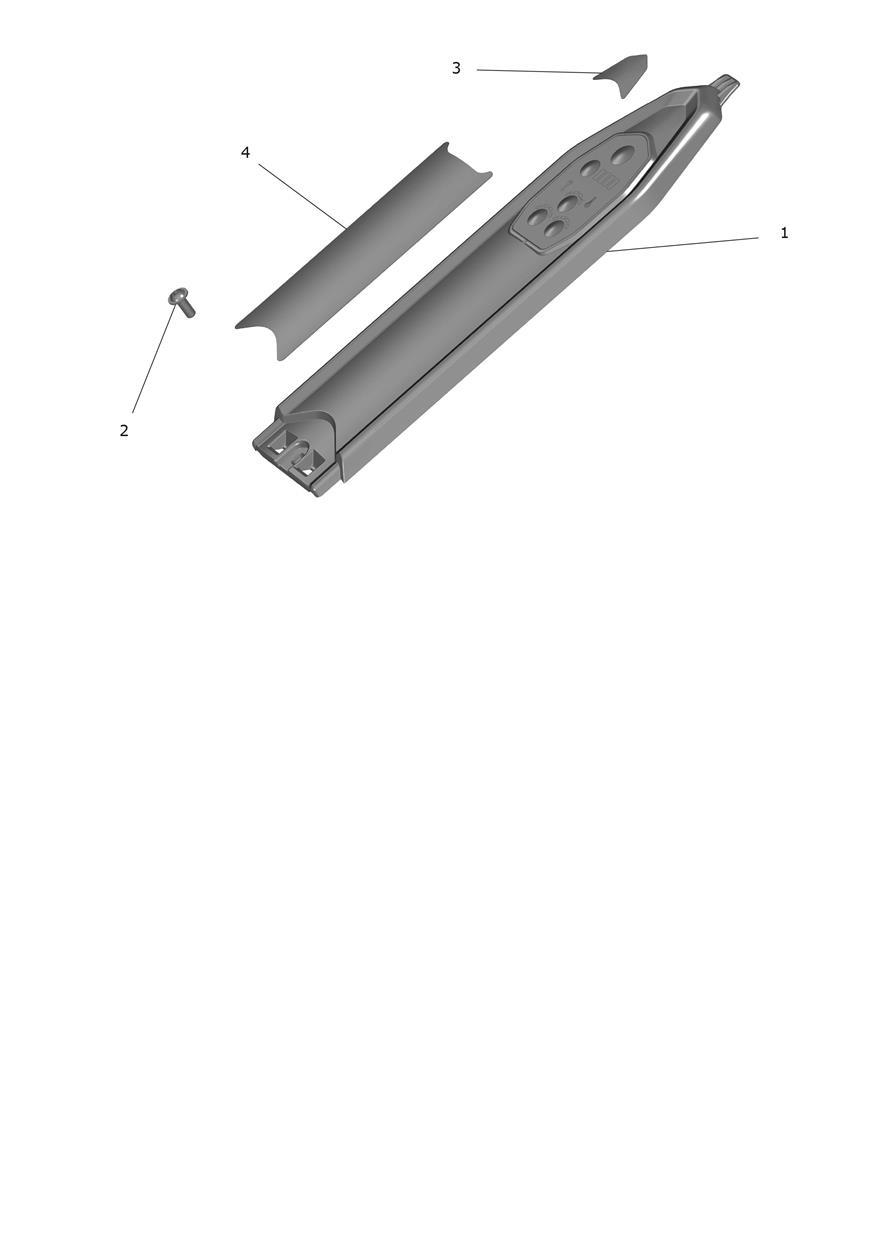

Exploded parts diagram — Tank Cover, Triumph OSET TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2317059
Tank Cover Assembly, MKP, L, Blk
Qty 1
Backordered at Triumph · expected Nov 20
$81.25
On backorder
2
TOS30003
Bolt, M6X16Mm, Flgd, 10.9, Blk
Qty 1
$1.99
Available
3
T2317888
Decal, Tank Tip, Red
Qty 1
$2.43
Available
4
T2317889
Decal, Tank Cover, Lrg, Red
Qty 1
$11.18
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
