Seat - Trials

Triumph OSET TXP-20 · 2023 · Bodywork · 9 parts

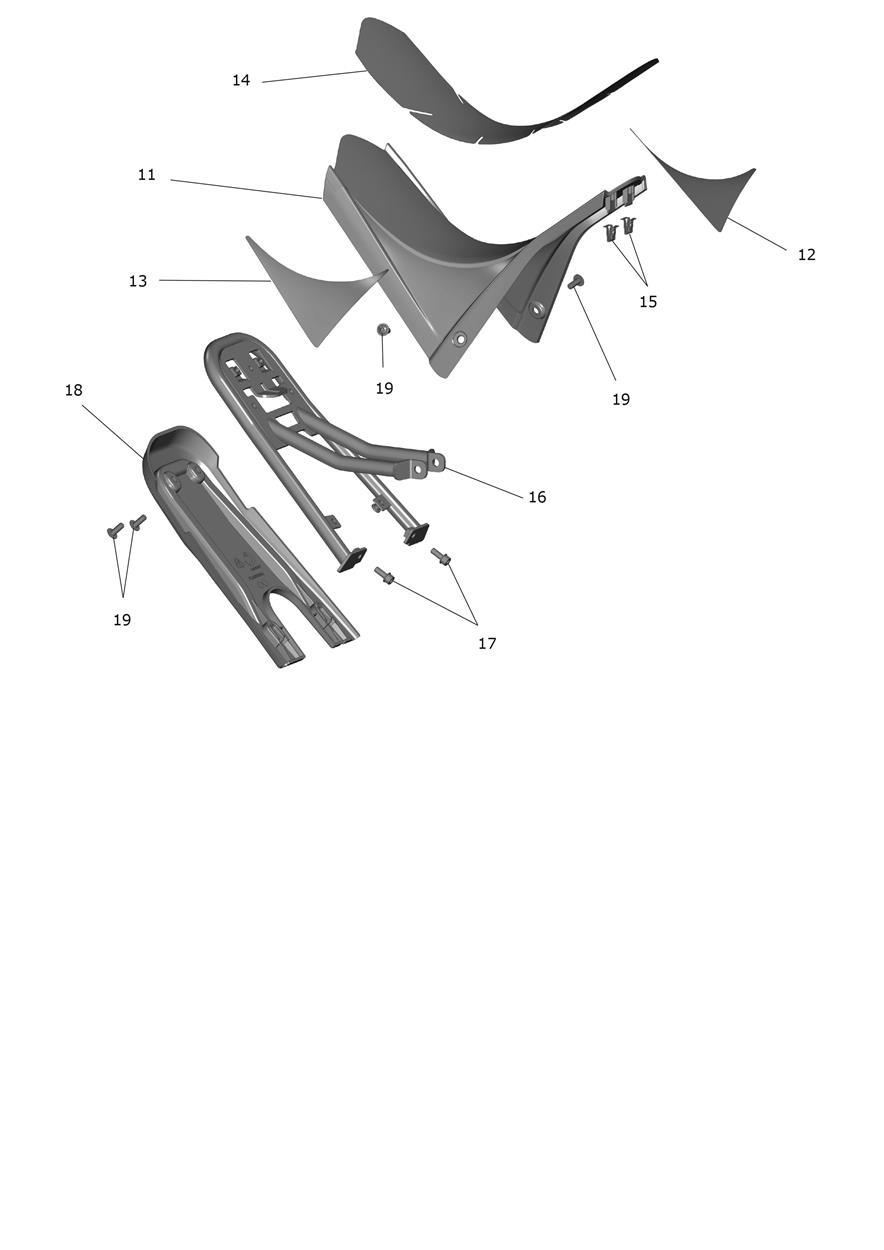

Exploded parts diagram — Seat - Trials, Triumph OSET TXP-20

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

11
T2317897
Seat Mould,Txp Trials,350Mm
Qty 1
$16.06
Available
12
T2317898
Decal, Trials Seat, Lhs, Red
Qty 1
$14.93
Available
13
T2317899
Decal, Trials Seat, Rhs, Red
Qty 1
$14.93
Available
14
T2317912
Decal, Trials Seat, Top, Red
Qty 1
$41.18
Available
15
TOS30022
Edge Clip, Push Fit, Steel
Qty 3
$2.91
Available
16
T2074196
Subframe, Trials, Fab, Black
Qty 1
$47.97
Available Shipping quote or pickup
17
TOS30005
Bolt,M6X16Mm,Cap+Wash,10.9,Blk
Qty 4
$1.99
Available
18
T2074197
Sguard, Rr, Trials, Mldg, Blk
Qty 1
$8.10
Available
19
TOS30003
Bolt, M6X16Mm, Flgd, 10.9, Blk
Qty 4
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
