Front Mudguard

Triumph OSET TXP-20 · 2023 · Bodywork · 7 parts

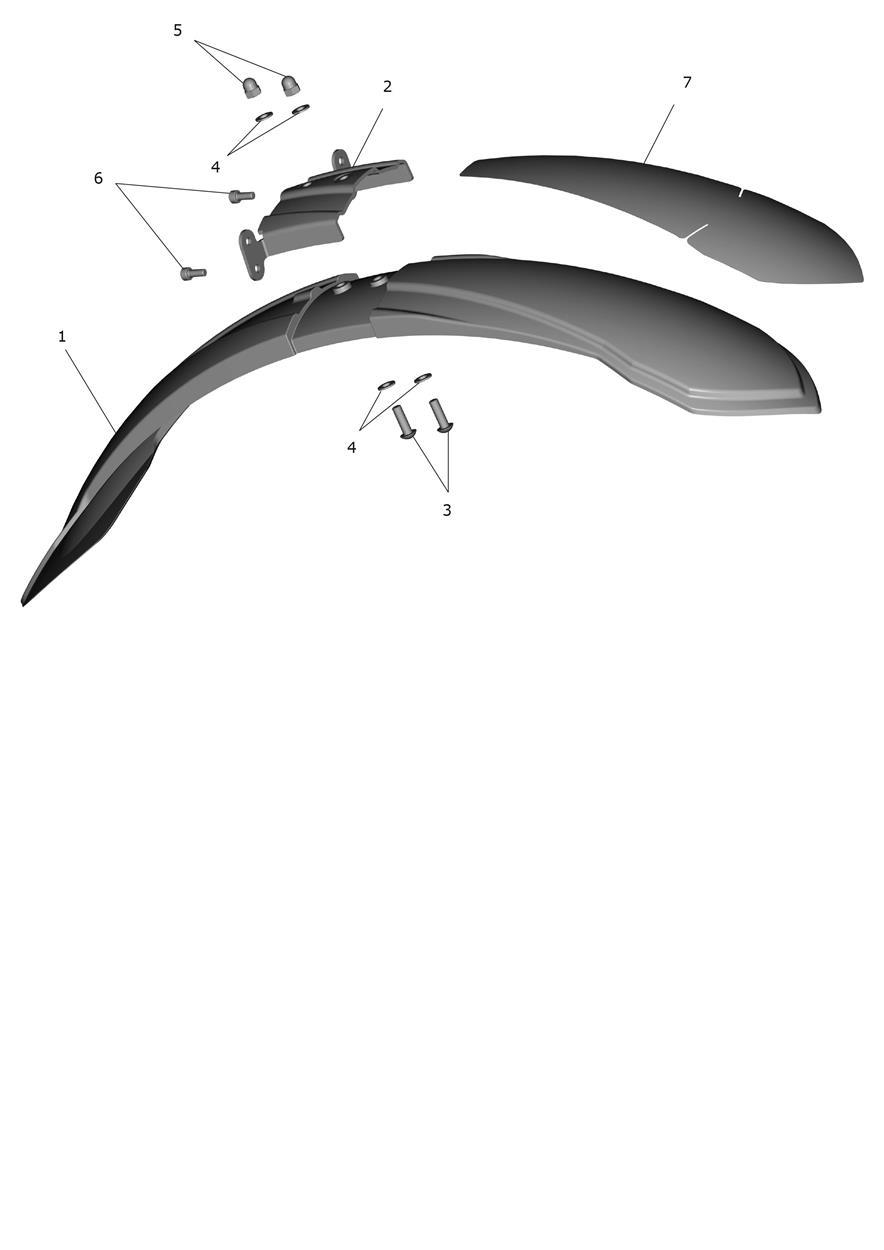

Exploded parts diagram — Front Mudguard, Triumph OSET TXP-20

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2312961
Mudguard Front, Mould, 435Mm
Qty 1
$18.66
Available Shipping quote or pickup
2
T2312963
Brkt, Fr Mudguard, Txp-20, Blk
Qty 1
$4.00
Available Shipping quote or pickup
3
TOS30044
Bolt, M5X12Mm, Butt, 10.9, Blk
Qty 2
$1.99
Available
4
TOS30018
Washer, M5, Form A, Steel, Blk
Qty 4
$1.99
Available
5
TOS30019
Nut, M5, Domed, SS A2
Qty 2
$1.99
Available
6
TOS30021
Bolt, M5X10Mm, Flgd, 10.9, Blk
Qty 2
$1.99
Available
7
T2312962
Decal, Front Mudguard, Red
Qty 1
$16.25
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
