Triumph OSET TXP-20 · 2023 · Bodywork · 10 parts

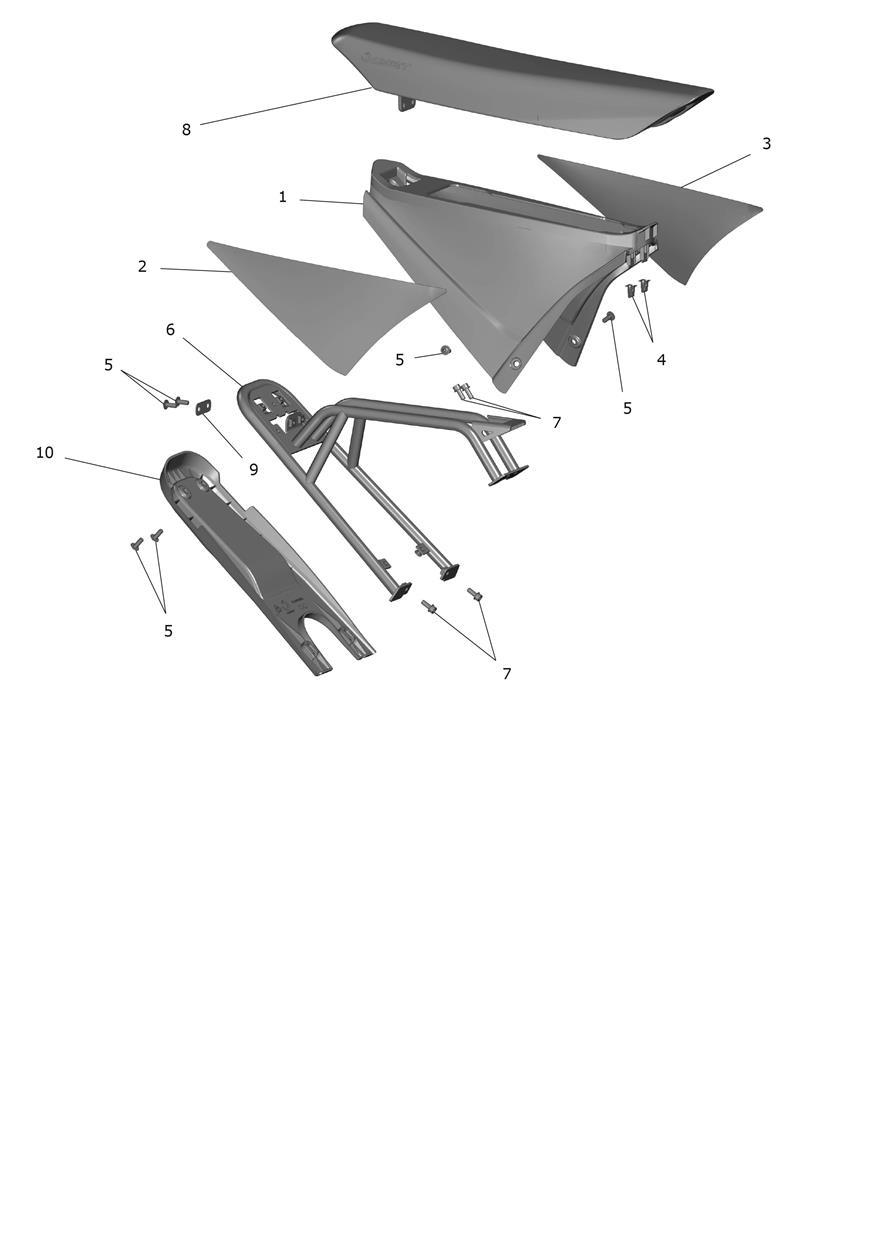

Exploded parts diagram — Seat - Explore, Triumph OSET TXP-20

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2317914
Seat Unit Trim, Explore, Mldg
Qty 1
$22.20
Available
2
T2317915
Decal, Exp Seat Trim, Rhs, Red
Qty 1
$47.43
Available
3
T2317916
Decal, Exp Seat Trim, Lhs, Red
Qty 1
$47.43
Available
4
TOS30022
Edge Clip, Push Fit, Steel
Qty 2
$2.91
Available
5
TOS30003
Bolt, M6X16Mm, Flgd, 10.9, Blk
Qty 7
$1.99
Available
6
T2074198
Subframe, Explore, Fab, Black
Qty 1
$60.50
Available Shipping quote or pickup
7
TOS30005
Bolt,M6X16Mm,Cap+Wash,10.9,Blk
Qty 4
$1.99
Available
8
T2317917
Seat Unit, Padded, 580Mm, Blk
Qty 1
$84.93
Available Shipping quote or pickup
9
T2317920
Seat Spreader Plate, Stainless
Qty 1
$1.99
Available
10
T2074206
Sguard, Rr, Explore, Mldg, Blk
Qty 1
$8.90
Available
