Front Wheel

Triumph OSET MX-10 · 2024 · Brakes & Wheels · 10 parts

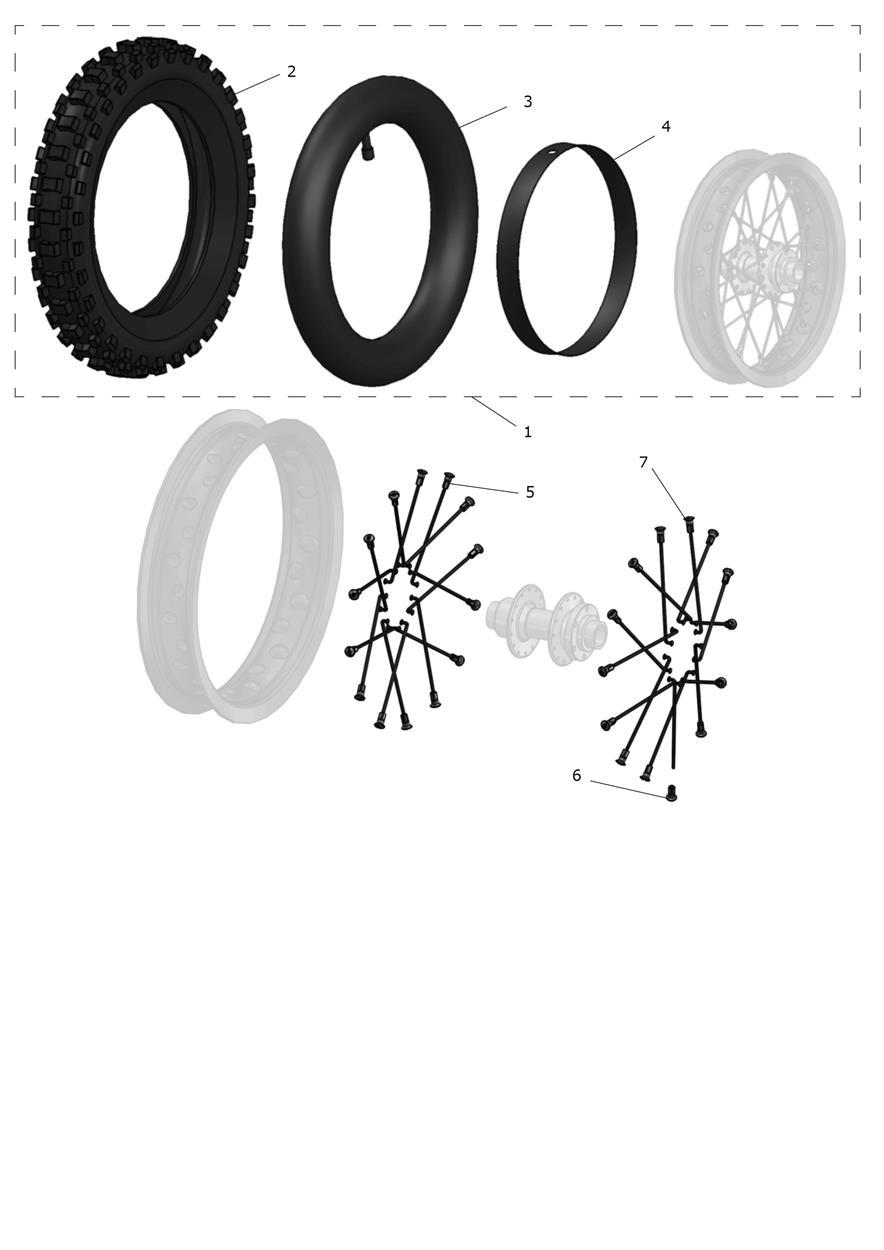

Exploded parts diagram — Front Wheel, Triumph OSET MX-10

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TWHE031655
Wheel Set, MX10, Fr, W.Tyre
Qty 1
$212.50
Available Shipping quote or pickup
2
TTYR011863
Tyre, 10X3.0" RM
Qty 1
$51.87
Available Shipping quote or pickup
3
TTYR022383
Tube, 10"X3.0" MC
Qty 1
$16.87
Available
4
TTYR032384
Rim Tape, 10" MC
Qty 1
$4.37
Available
5
TWHE081406
Spoke, 12GX105Mm, Slv
Qty 14
$1.99
Available
6
TWHE082346
Nipple, 12GX13, Slv
Qty 32
$1.99
Available
7
TWHE081412
Spoke, 12GX103Mm, Slv
Qty 14
$1.99
Available
8
TFIX051948
Bearing, 20X32X7Mm
Qty 1
Not Shown in Graphic.
$10.62
Available
9
TWHE071739
Hub Spacers, Fr Wheel, Alu, Red
Qty 2
Not Illustrated.
$12.50
Available
10
TWHE012437
Axle, 20 Thru Axle, DNM
Qty 1
Not Illustrated.
$35.00
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
