Main Frame Assembly

Triumph OSET MX-10 · 2024 · Chassis & Suspension · 18 parts

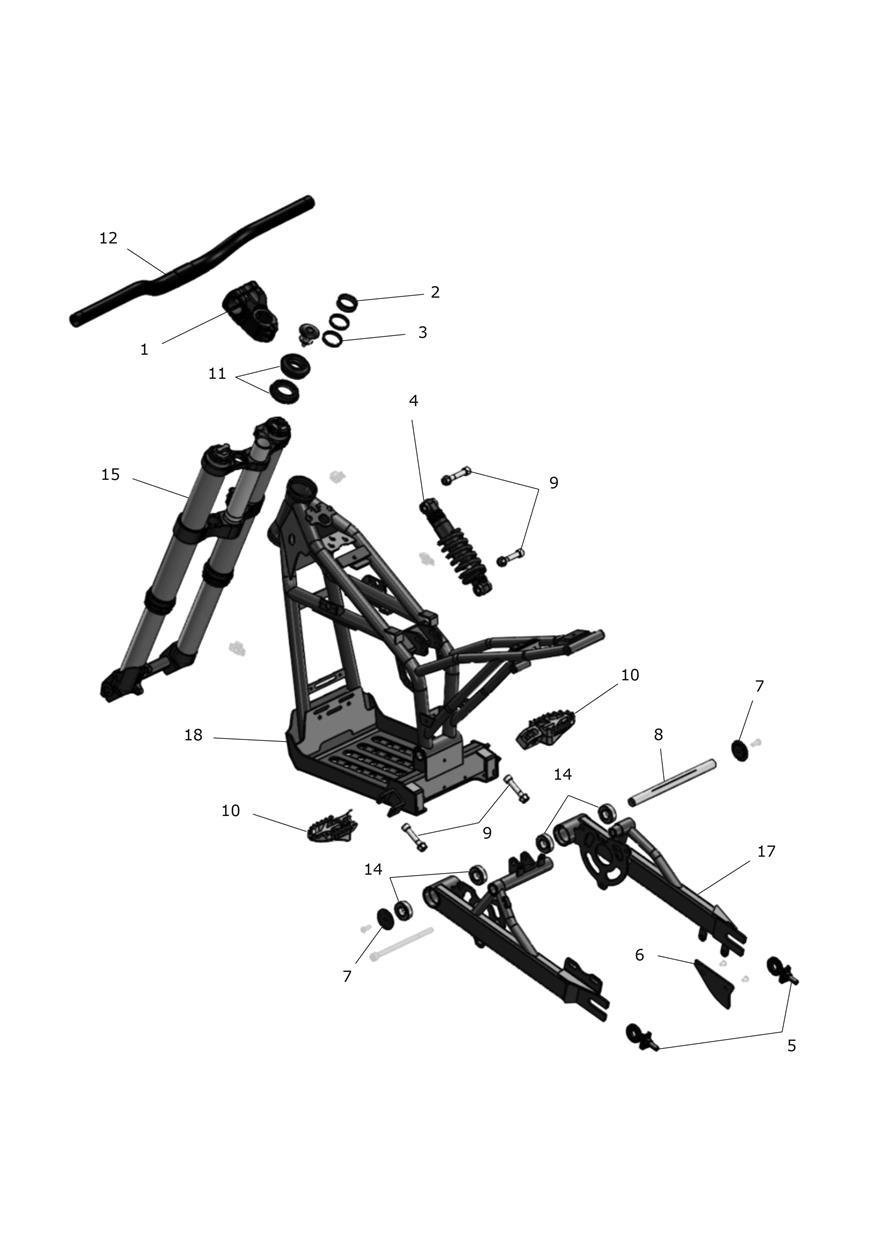

Exploded parts diagram — Main Frame Assembly, Triumph OSET MX-10

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1

Stem, Alloy, Blk

Qty 1

No longer supplied by Triumph

No longer available

Not on our shelf Ask the parts desk

2

Headset, Spacer, 10Mm, Alu, Blk

Qty 1

$3.12

Available

3

Headset, Spacer, 5Mm, Alu, Blk

Qty 2

$3.12

Available

4

RR Shock, DV22AR, L165, 250LB

Qty 1

$90.62

Available

5

Chain Adj, 12Mm, 2 Sets

Qty 1

$18.75

Available

6

Chain Guard, Lower, STL, Blk

Qty 1

Backordered at Triumph · we’ll confirm the ship date after you order

$13.75

On backorder

7

SA Cover, STL, Red

Qty 1

$10.62

Available

8

Swing Arm Axle, 15Mm, STL

Qty 1

$28.12

Available

9

Bolt Kit, M8X45Mm, 2 Sets

Qty 1

$3.12

Available

10

Footpeg Kit, Cast, Red

Qty 1

$76.25

Available

11

Headset, Sealed Bearings

Qty 1

$35.00

Available

12

Handlebar, OSET, Alloy, Blk

Qty 1

$68.75

Available Shipping quote or pickup

14

Bearing, 15X32X9Mm, STL, White

Qty 4

$9.12

Available

15

Forks - DNM USD24, L-410, Gold

Qty 1

$450.00

Available Shipping quote or pickup

17

Swing Arm, MX10, STL, Blk

Qty 1

$156.25

Available Shipping quote or pickup

18

Frame, MX10, Fr, STL, Blk

Qty 1

$319.93

Available Shipping quote or pickup

19

Fork Damping Kit

Qty 1

$211.25

Available

20

Qty 1

Not Shown in Illustration.

$43.75

Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
