Electrical system

Triumph OSET MX-10 · 2024 · Electrical · 13 parts

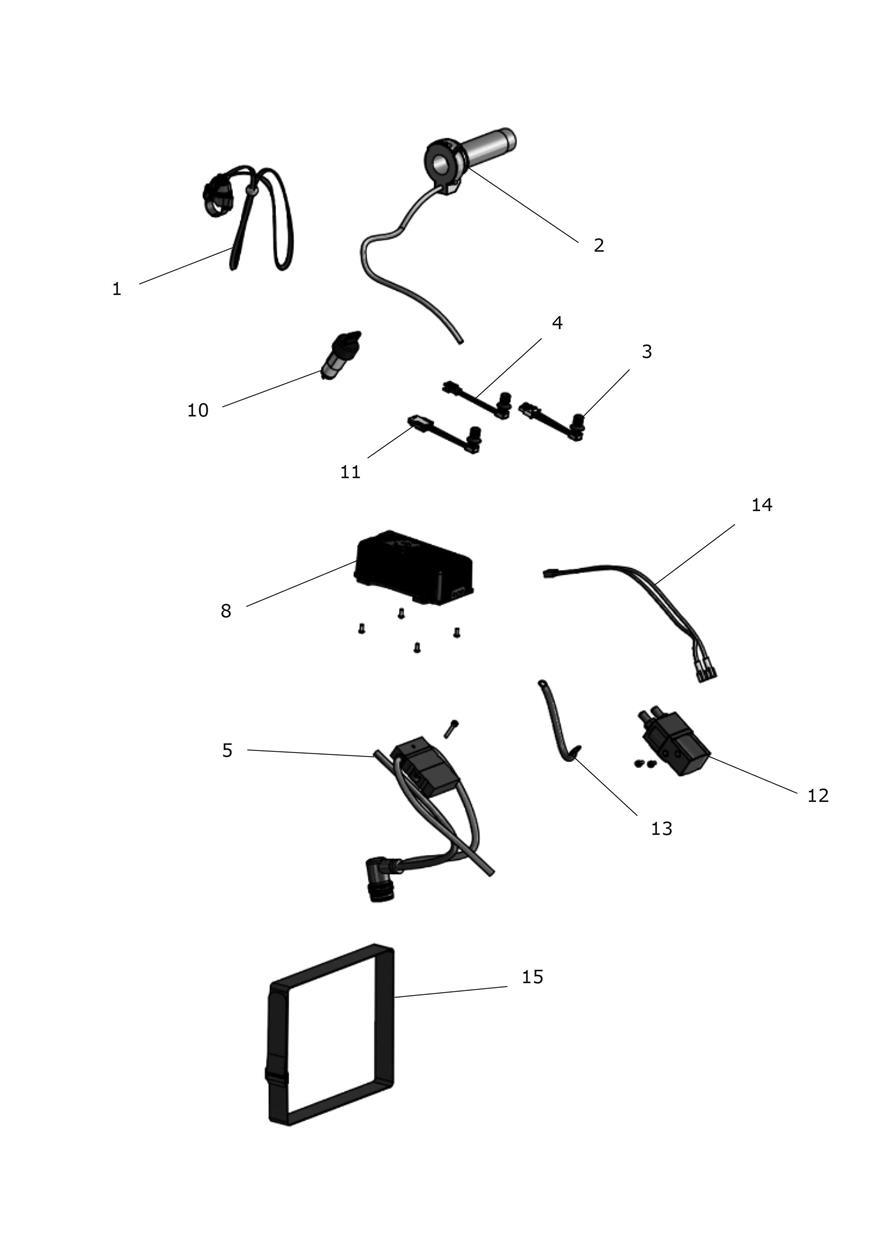

Exploded parts diagram — Electrical system, Triumph OSET MX-10

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TELE062812
OSET Safety Lanyard Assembly
Qty 1
No longer supplied by Triumph
$56.18
Not on our shelf Ask the parts desk
2
TELE112990
Throttle, 48V, Grey OSET Grip
Qty 1
$43.75
Available
3
TELE082425
Response Dial, Water Resistant
Qty 1
$18.75
Available
4
TELE082372
Speed Dial, Water Resistant
Qty 1
$18.75
Available
5
TELE101521
Harness, Positive, 48V, Fuse
Qty 1
$15.62
Available
8
TELE042778
Controller, 48V, Li-ion, 3 Dial
Qty 1
$356.25
Available
10
TELE072886
Key Switch Assembly
Qty 1
$20.00
Available
11
TELE082373
Power Dial - Water Resistant
Qty 1
$18.75
Available
12
T2504349
Relay,48V,Sealed,M8
Qty 1
$72.28
Available
13
TELE101518
Harness, Relay Lead
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$6.25
On backorder
14
TELE101517
Harness, Lead, 48V
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$6.87
On backorder
15
TFIX072453
Velcro Strap, Li-ion Batt, Blk
Qty 1
$6.87
Available
16
TELE061769
OSET Safety Lanyard Magnet
Qty 1
Not Illustrated.
No longer supplied by Triumph
No longer available
Not on our shelf Ask the parts desk
