Rear Wheel

Triumph OSET 24.0 Racing · 2024 · Brakes & Wheels · 8 parts

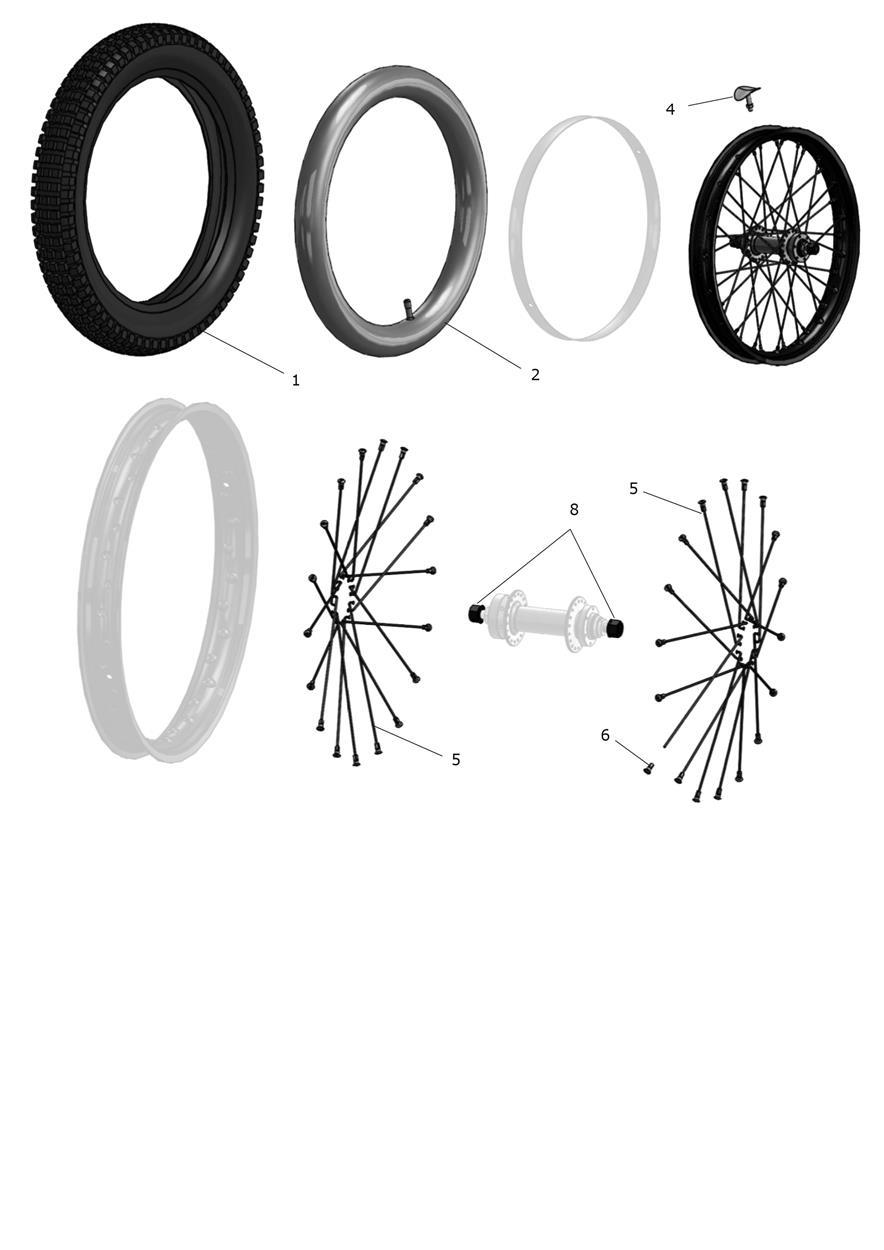

Exploded parts diagram — Rear Wheel, Triumph OSET 24.0 Racing

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TTYR012222
Tyre, 17X3.5 R, MC, Trials
Qty 1
$100.00
Available Shipping quote or pickup
2
TTYR022224
Tube, 17"X3.5" MC
Qty 1
$18.12
Available
3
TWHE042220
Wheel, 17" MR, Rr, 36H
Qty 1
$227.50
Available
4
TWHE061585
Rim Lock, 1.4"-1.6" Rims
Qty 1
$12.50
Available
5
TWHE082207
Spoke, 12GX13, Slv
Qty 36
$1.99
Available
6
TWHE082346
Nipple, 12GX13, Slv
Qty 36
$1.99
Available
7
TFIX051572
Bearing, 12X28X8Mm, 6001RS
Qty 1
Not Shown in Image.
$10.93
Available
8
TFIX022430
Nut, M12XP1.75, Flngd, Blk
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$4.68
On backorder

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
