Front Wheel

Triumph OSET 24.0 Racing · 2024 · Brakes & Wheels · 10 parts

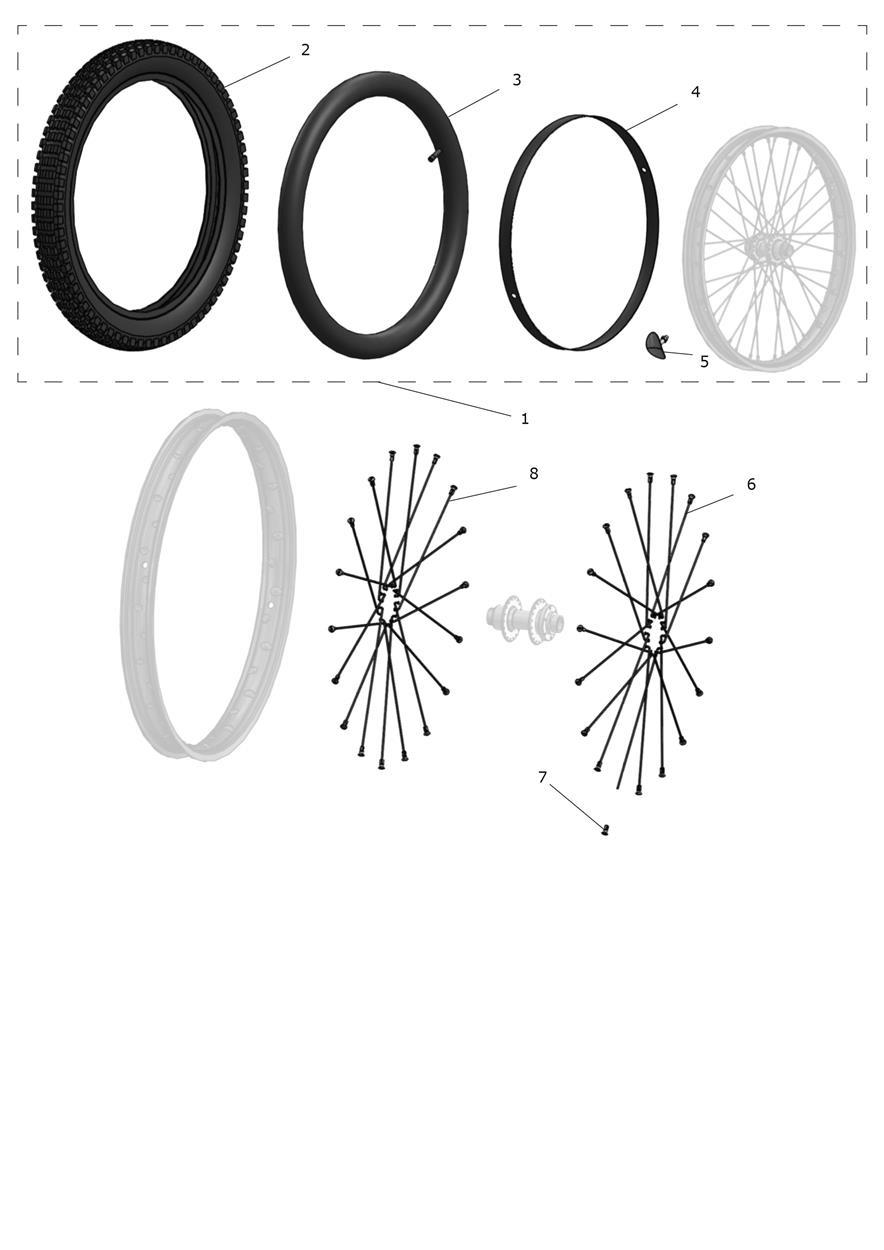

Exploded parts diagram — Front Wheel, Triumph OSET 24.0 Racing

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TWHE032227
Wheel Set, 24R, Fr, W.Tyre
Qty 1
$231.25
Available Shipping quote or pickup
2
TTYR012221
Tyre, 19X2.5, F MC, Trials
Qty 1
$69.37
Available Shipping quote or pickup
3
TTYR022223
Tube, 19"X2,5"
Qty 1
$16.87
Available
4
TTYR032225
Rim Tape, 19" MC
Qty 1
$4.37
Available
5
TWHE061585
Rim Lock, 1.4"-1.6" Rims
Qty 1
$12.50
Available
6
TWHE082204
Spoke, 12GX219Mm, Slv
Qty 18
$1.99
Available
7
TWHE082346
Nipple, 12GX13, Slv
Qty 36
$1.99
Available
8
TWHE082203
Spoke, 12GX221Mm, Slv
Qty 18
$1.99
Available
9
TFIX051948
Bearing, 20X32X7Mm
Qty 1
Not Shown in Image.
$10.62
Available
10
TWHE071739
Hub Spacers, Fr Wheel, Alu, Red
Qty 2
$12.50
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
