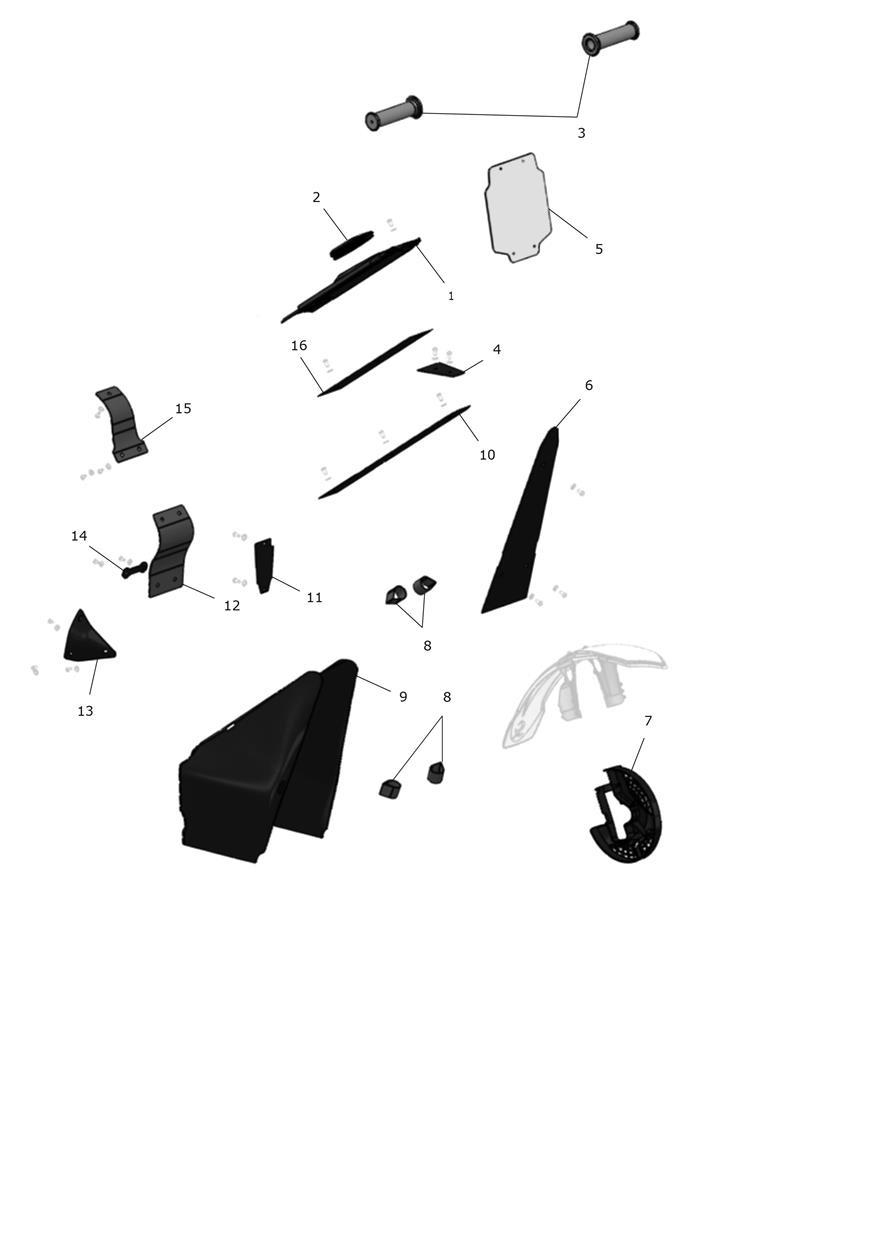

Side panels
Triumph OSET 24.0 Racing · 2024 · Bodywork · 16 parts
Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
3
TPLA112627
Grips, Adult, Grey
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$16.87
On backorder
4
TPLA052233
Infill Panel, 24R INT, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$9.37
On backorder
10
TPLA052231
Infill Panel, 24R, Lower, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$12.50
On backorder
11
TPLA052240
Infill Panel, 24R, Rr, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$9.37
On backorder
12
TPLA062241
S Guard, Rr, Rubber, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$18.75
On backorder
15
TPLA062253
S Guard, Rr, Rubber
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$12.50
On backorder
16
TPLA052232
Infill Panel, 24R, Top, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$12.50
On backorder
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
