Brake Assemblies

Triumph OSET 24.0 Racing · 2024 · Accessories · 6 parts

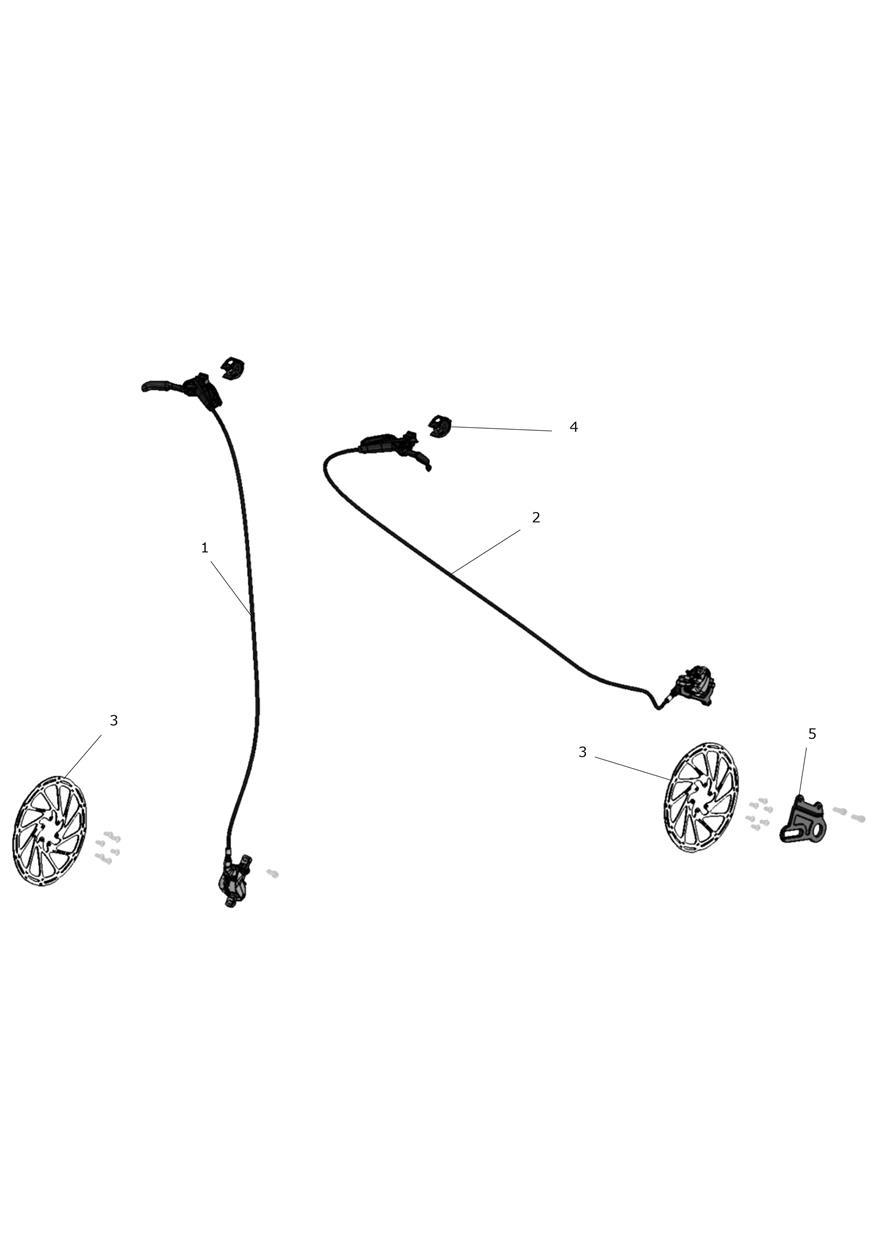

Exploded parts diagram — Brake Assemblies, Triumph OSET 24.0 Racing

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TBRK052254
Brake Set, Level TL, EXC Brkt
Qty 1
$118.75
Available
2
TBRK052255
Brake Set, Level TL, Rr, 180
Qty 1
$118.75
Available
3
TBRK032252
Brake Disc, 180, Centreline
Qty 1
$50.00
Available
4
TBRK082536
Brake Clamp, SRAM, Matte Blk
Qty 1
$18.12
Available
5
TBRK072734
Brake Adaptor, Rr Carrier
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$43.75
On backorder
6
TBRK062256
Brake Pads, SRAM, Organic
Qty 1
Not Shown in Graphic.
$31.25
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
