Rear Wheel

Triumph OSET 20.0 Racing MkII SLA · 2024 · Brakes & Wheels · 9 parts

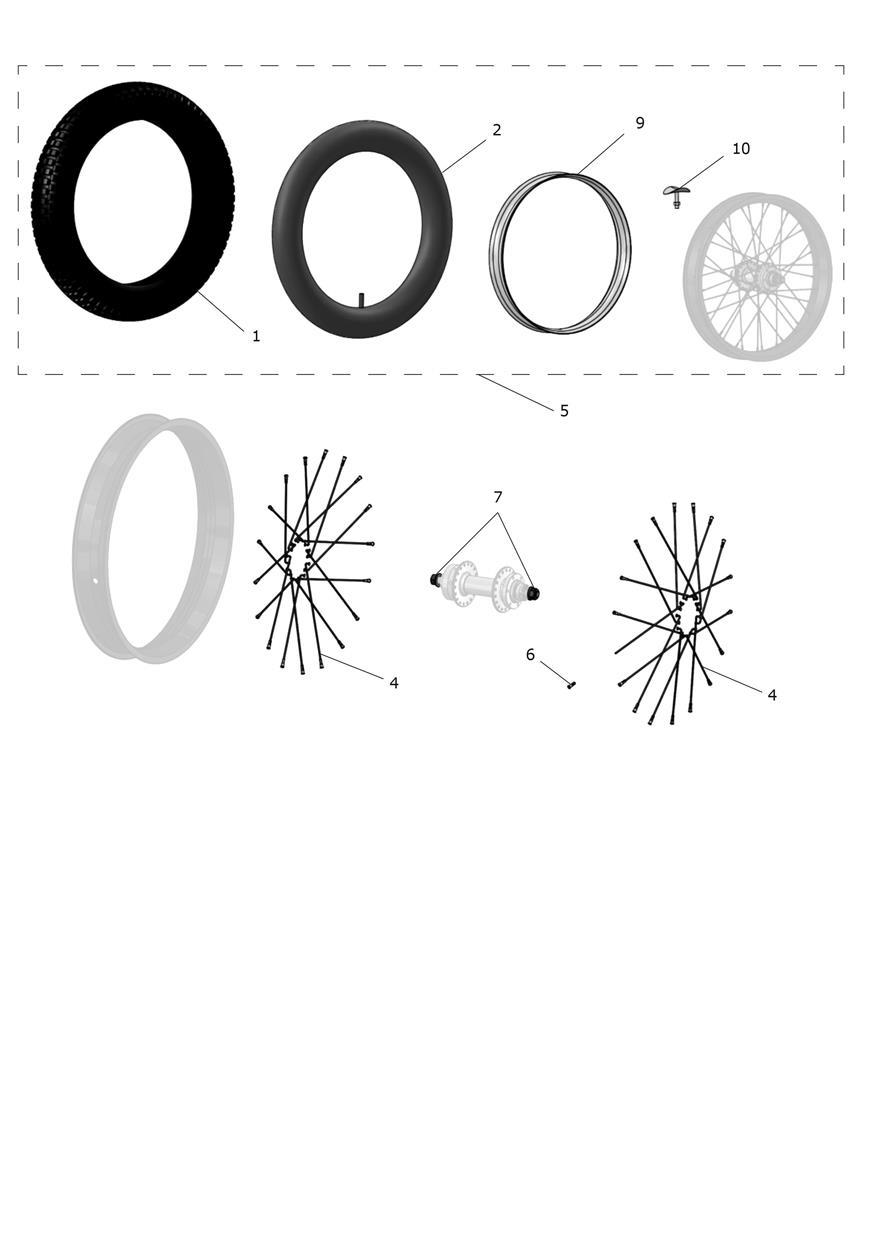

Exploded parts diagram — Rear Wheel, Triumph OSET 20.0 Racing MkII SLA

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TTYR011604
Tyre, 14X3.0"R, MC Trials
Qty 1
$76.87
Available Shipping quote or pickup
2
T2011264
Tube, 14X3.0'' Mc
Qty 1
$17.00
Available
4
TWHE081886
Spoke, 13GX158Mm
Qty 16
$1.99
Available
5
TWHE031507
Wheel Set, 20R, Rr, W.Tyre
Qty 1
$243.75
Available Shipping quote or pickup
6
TWHE081887
Nipple, 13GX169Mm, Blk
Qty 16
$1.99
Available
7
TFIX021282
Nut, 3/8" Axle, Flanged, Blk
Qty 2
$1.99
Available
8
TFIX051738
Bearing, 10X26X8Mm, 6000RS
Qty 1
Not Shown in Graphic.
$10.93
Available
9
TTYR031612
Rim Tape, 14"-16"X22Mm
Qty 1
$4.37
Available
10
TWHE061585
Rim Lock, 1.4"-1.6" Rims
Qty 1
$12.50
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
