Main Frame Assembly

Triumph OSET 20.0 Racing MkII SLA · 2024 · Chassis & Suspension · 27 parts

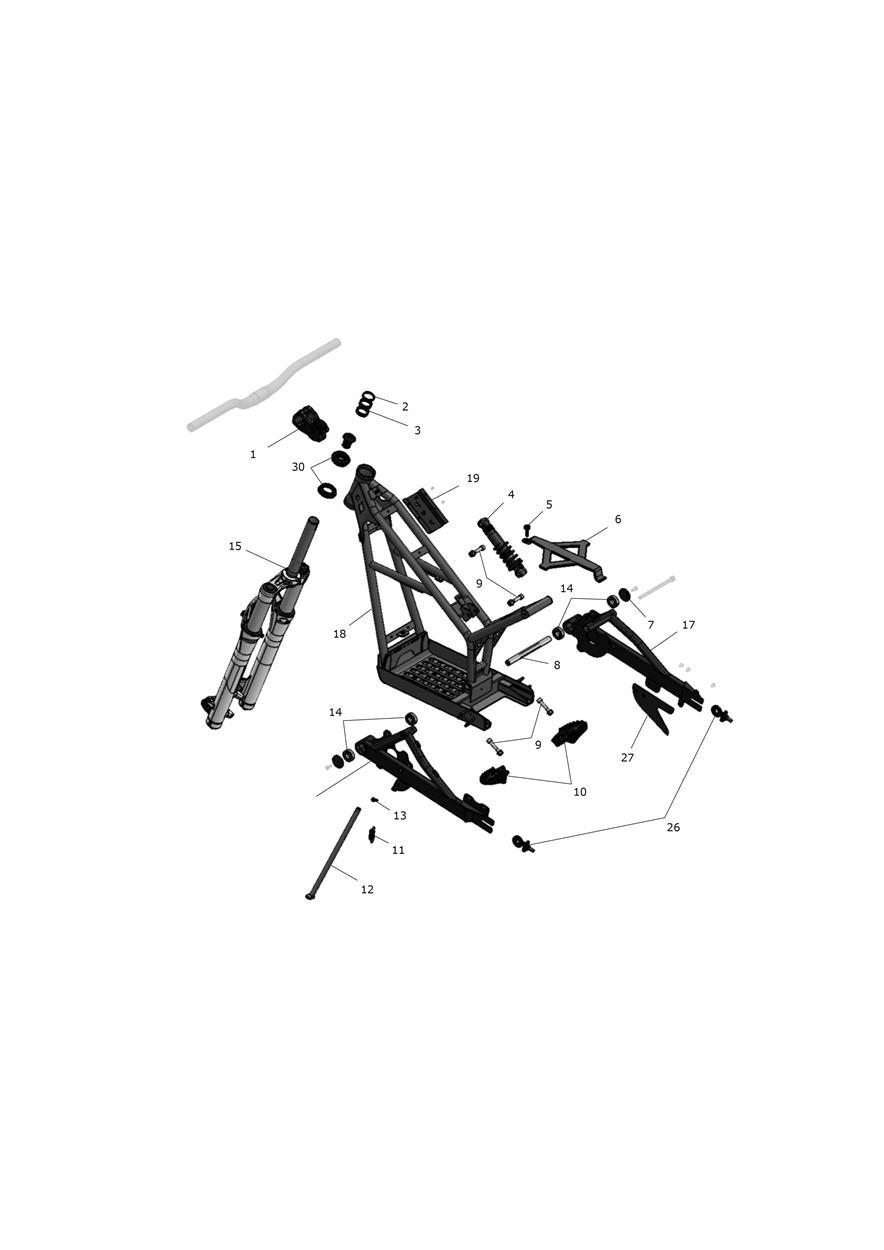

Exploded parts diagram — Main Frame Assembly, Triumph OSET 20.0 Racing MkII SLA

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TCHS062579
Stem, Alloy, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$50.00
On backorder
2
TCHS121259
Headset, Spacer, 10Mm, Alu, Blk
Qty 1
$3.12
Available
3
TCHS121260
Headset, Spacer, 5Mm, Alu, Blk
Qty 1
$3.12
Available
4
TCHS032210
RR Shock, DV22AR, L165, 650LB
Qty 1
$90.62
Available
5
TFIX012004
Bolt, M6X22Mm with Cover
Qty 1
$1.99
Available
6
TCHS091706
Battery Strap, 48V, STL, Red
Qty 1
$25.00
Available
7
TCHS081716
SA Cover, STL, Red
Qty 1
$10.62
Available
8
TCHS081741
Swing Arm Axle, 15Mm, STL
Qty 1
$28.12
Available
9
TFIX012607
Bolt Kit, M8X45Mm, 2 Sets
Qty 1
$3.12
Available
10
TCHS012194
Footpeg Kit, Forged, Red
Qty 1
$90.00
Available
11
TCHS101314
S Stand, Spring, STL, Silver
Qty 1
$9.37
Available
12
TCHS101578
S Stand, STL, Slv
Qty 1
$23.12
Available Shipping quote or pickup
13
TFIX011370
Bolt, M6X23Mm, Hex Cap Head
Qty 1
$1.99
Available
14
TFIX051834
Bearing, 15X32X9Mm, STL, White
Qty 4
$9.12
Available
15
TCHS021991
Forks, Space 2, L-485, White
Qty 1
$450.00
Available Shipping quote or pickup
17
TCHS081533
Swing Arm, 20.0R, Alu, Blk
Qty 1
No longer supplied by Triumph
$206.25
Not on our shelf Shipping quote or pickup
18
TCHS072891
Frame, 20.0R, Front, Stl, Red
Qty 1
$332.43
Available Shipping quote or pickup
19
TCHS092620
Bracket, 3 Dial, 20R, STL, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$10.62
On backorder
20
TCHS041749
Shock Spring, 350Lbs, L-85Mm
Qty 1
Not Illustrated.
$20.62
Available
21
TCHS041750
Shock Spring, 450Lbs, L-85Mm
Qty 1
Not Illustrated.
$20.62
Available
22
TCHS041751
Shock Spring, 550Lbs, L-85Mm
Qty 1
Not Illustrated.
$20.62
Available
23
TCHS041752
Shock Spring, 750Lbs, L-85Mm
Qty 1
Not Illustrated.
$20.62
Available
24
TCHS041589
Shock Spring, 1000Lbs, L-85Mm
Qty 1
Not Illustrated..
$20.62
Available
25
TCHS041949
Shock Spring, 650Lbs, L-85Mm
Qty 1
Not Illustrated.
$20.62
Available
26
TCHS112213
Chain adj, 9mm, Stl, Blk
Qty 2
$18.75
Available
27
TPLA081465
Chain Guard, Lower, STL, Blk
Qty 1
$15.62
Available
30
TCHS121553
Headset, Sealed Bearings
Qty 1
$35.00
Available
