Electrical system

Triumph OSET 16.0 Racing · 2024 · Electrical · 13 parts

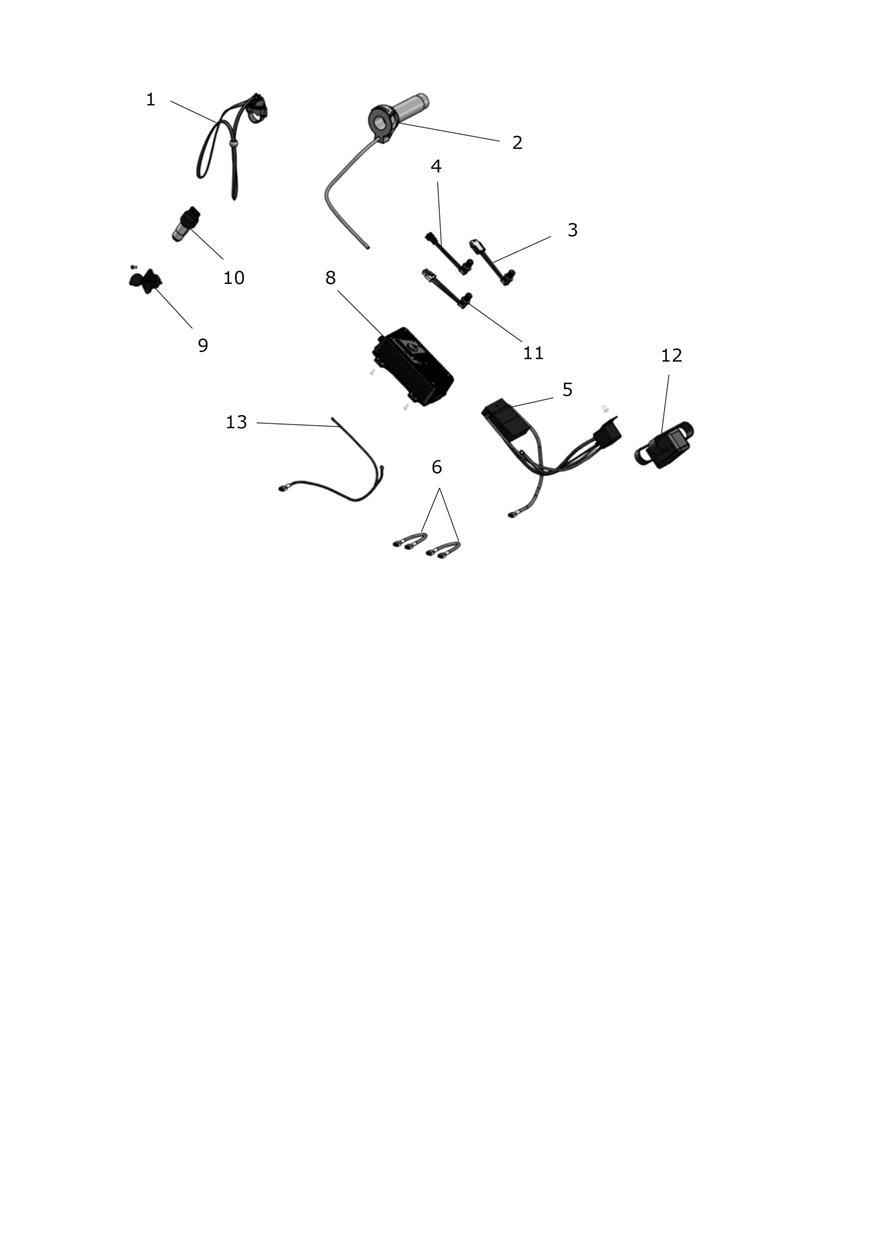

Exploded parts diagram — Electrical system, Triumph OSET 16.0 Racing

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TELE062812
OSET Safety Lanyard Assembly
Qty 1
No longer supplied by Triumph
$56.18
Not on our shelf Ask the parts desk
2
TELE112989
Throttle, 36V, Grey OSET Grip
Qty 1
$43.75
Available
3
TELE082425
Response Dial, Water Resistant
Qty 1
$18.75
Available
4
TELE082372
Speed Dial, Water Resistant
Qty 1
$18.75
Available
5
TELE101522
Harness, POS, 36V, Relay & Fuse
Qty 1
$37.50
Available
6
TELE101390
Harness Link Wire, Short, Red
Qty 1
$1.99
Available
8
TELE042852
Controller, 36V, 3 Dial
Qty 1
$231.25
Available
9
TELE011272
Charge Port, Female, 3Pin
Qty 1
$25.00
Available
10
TELE072886
Key Switch Assembly
Qty 1
$20.00
Available
11
TELE082373
Power Dial - Water Resistant
Qty 1
$18.75
Available
12
TELE091502
Relay Bag, 36V, Nylon, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$25.00
On backorder
13
TELE101520
Harness, Negative, 16.0 & 20.0L
Qty 1
$15.62
Available
14
TELE061769
OSET Safety Lanyard Magnet
Qty 1
Not Illustrated.
No longer supplied by Triumph
No longer available
Not on our shelf Ask the parts desk

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
