Electrical system

Triumph OSET 12.5 Racing · 2024 · Electrical · 11 parts

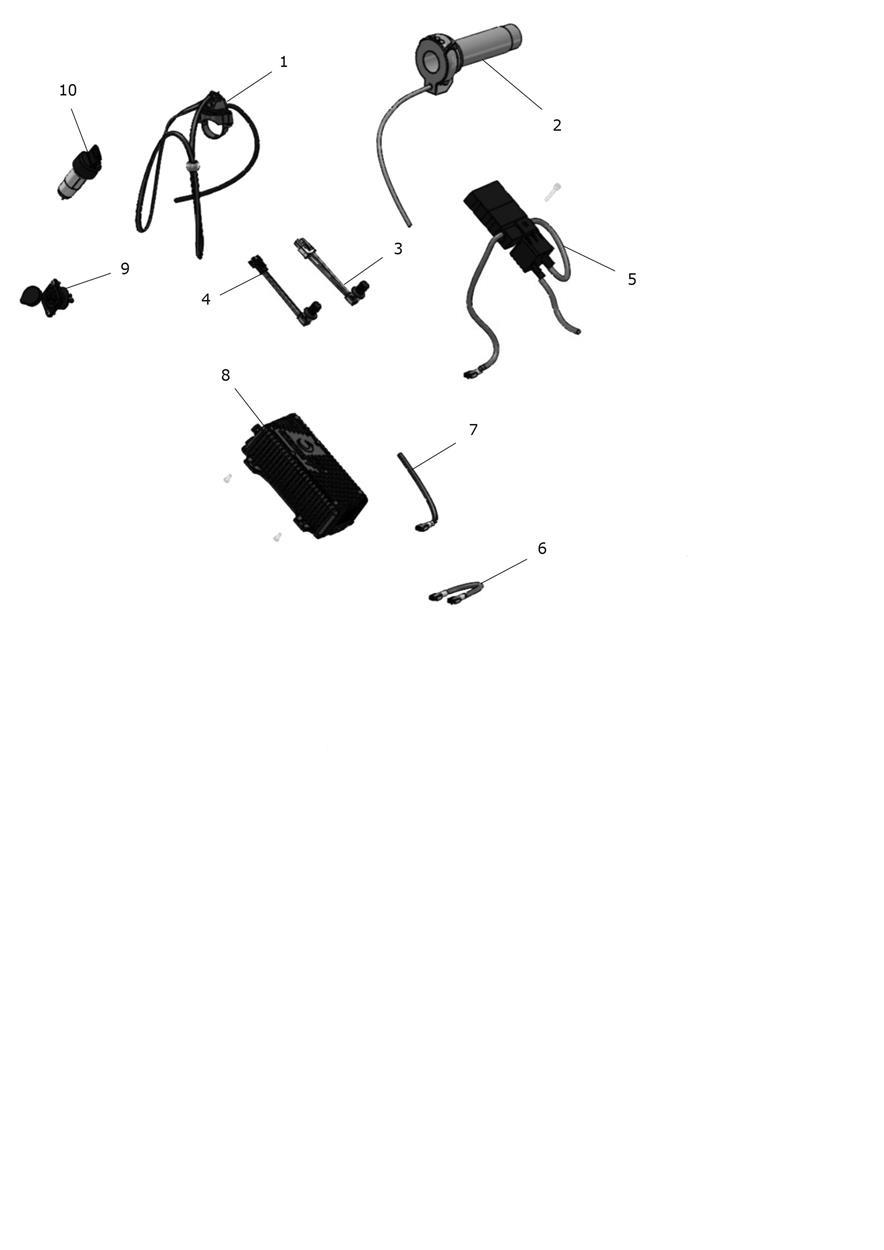

Exploded parts diagram — Electrical system, Triumph OSET 12.5 Racing

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TELE062812
OSET Safety Lanyard Assembly
Qty 1
No longer supplied by Triumph
$56.18
Not on our shelf Ask the parts desk
2
TELE112988
Throttle, 24V, Grey OSET Grip
Qty 1
$37.50
Available
3
TELE082425
Response Dial, Water Resistant
Qty 1
$18.75
Available
4
TELE082372
Speed Dial, Water Resistant
Qty 1
$18.75
Available
5
TELE101327
Harness, POS, 24V, Relay & Fuse
Qty 1
Low stock at Triumph
$37.50
Limited availability
6
TELE101390
Harness Link Wire, Short, Red
Qty 1
$1.99
Available
7
TELE101339
Wiring Harness, NEG, 12.5
Qty 1
$15.62
Available
8
TELE042851
Controller, 24V, SLA, 2 Dial
Qty 1
$231.25
Available
9
TELE011272
Charge Port, Female, 3Pin
Qty 1
$25.00
Available
10
TELE072886
Key Switch Assembly
Qty 1
$20.00
Available
11
TELE061769
OSET Safety Lanyard Magnet
Qty 1
No longer supplied by Triumph
No longer available
Not on our shelf Ask the parts desk

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
