Final Drive

Triumph OSET 12.5 Eco · 2024 · Accessories · 6 parts

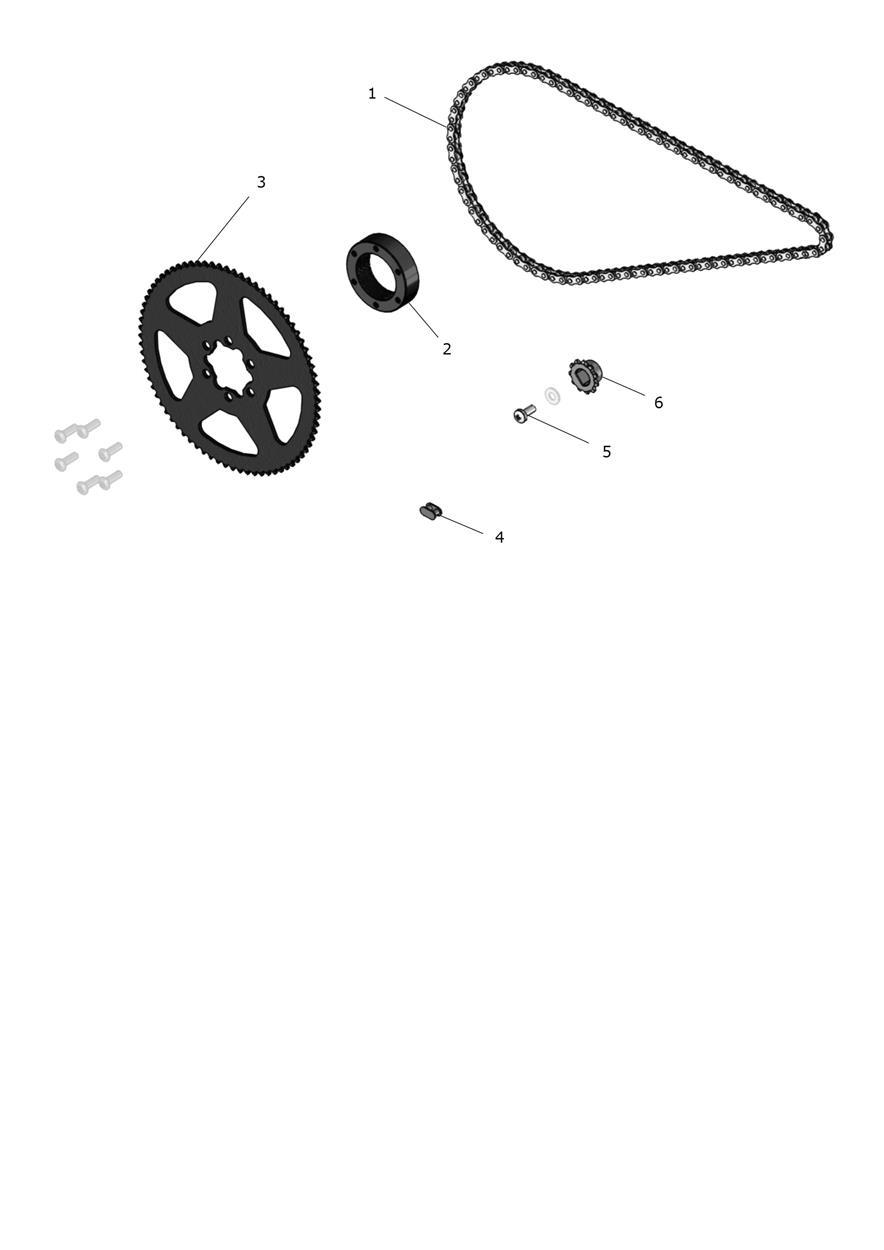

Exploded parts diagram — Final Drive, Triumph OSET 12.5 Eco

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TDRV011457
Chain, #25, 9Mm
Qty 1
$20.00
Available
2
TDRV051622
Sprocket Adaptor, THRD, Blk
Qty 1
No longer supplied by Triumph
No longer available
Not on our shelf Ask the parts desk
3
TDRV031498
Rr Sprocket, 76T, NO.25, STL
Qty 1
$31.25
Available
4
TDRV021894
Masterlink, #25 Chain, 3PCS
Qty 1
$6.87
Available
5
TFIX011831
Bolt, M5X12Mm, Pan-Head
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
6
TDRV041499
Sprocket 11T, No.25, D, STL
Qty 1
$23.12
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
