Main Frame Assembly

Triumph OSET 12.5 Eco · 2024 · Chassis & Suspension · 16 parts

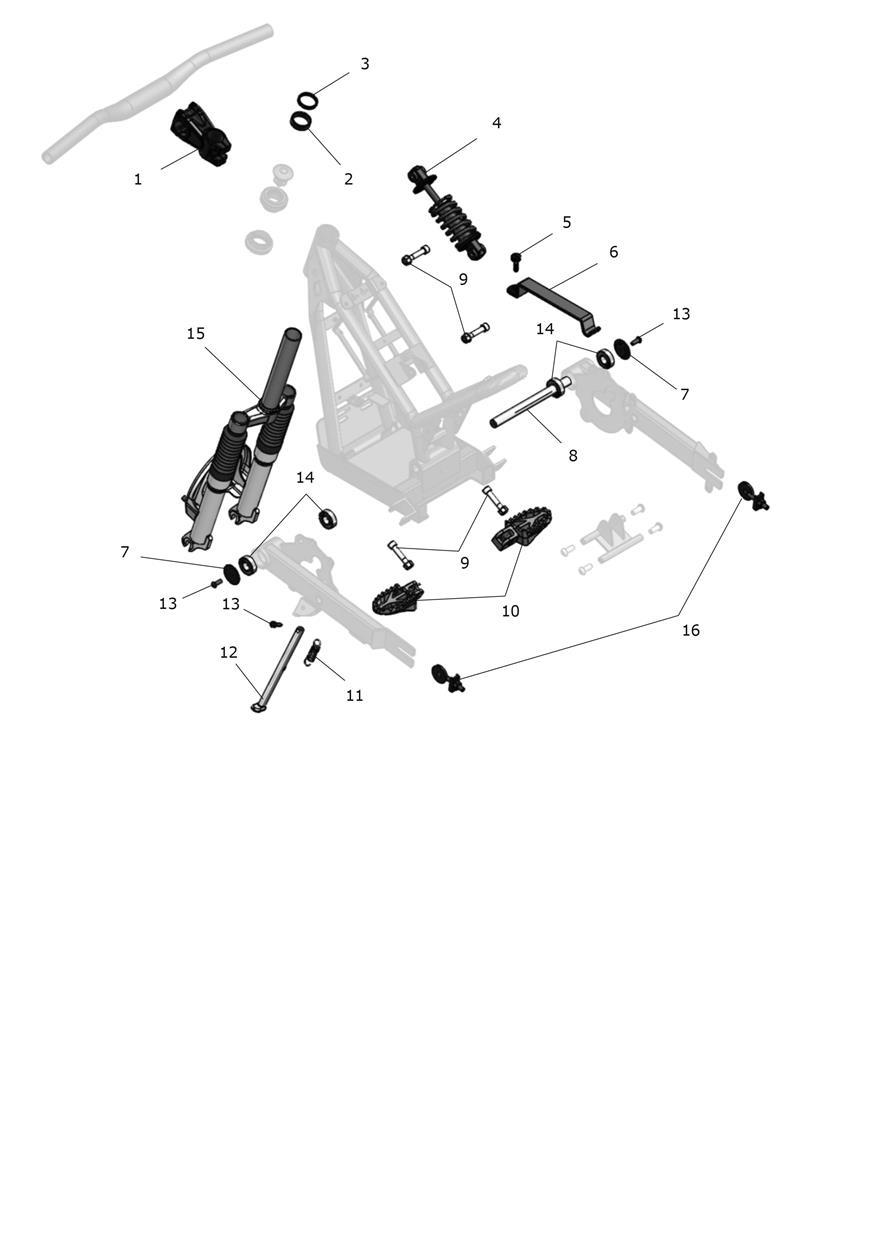

Exploded parts diagram — Main Frame Assembly, Triumph OSET 12.5 Eco

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
TCHS061313
Stem, Frgd Alloy, Blk
Qty 1
$44.37
Available
2
TCHS121259
Headset, Spacer, 10Mm, Alu, Blk
Qty 1
$3.12
Available
3
TCHS121260
Headset, Spacer, 5Mm, Alu, Blk
Qty 1
$3.12
Available
4
TCHS031267
Rr Shock, DV22, L165, 250LB
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$62.50
On backorder
5
TFIX012004
Bolt, M6X22Mm with Cover
Qty 1
$1.99
Available
6
TCHS091270
Battery Strap, 24V, STL, Red
Qty 1
$18.75
Available
7
TCHS081716
SA Cover, STL, Red
Qty 2
$10.62
Available
8
TCHS081741
Swing Arm Axle, 15Mm, STL
Qty 1
$28.12
Available
9
TFIX012607
Bolt Kit, M8X45Mm, 2 Sets
Qty 2
$3.12
Available
10
TCHS011257
Footpeg Kit, Cast, Red
Qty 1
$76.25
Available
11
TCHS101314
S Stand, Spring, STL, Silver
Qty 1
$9.37
Available
12
TCHS101256
S Stand, Steel, Silver
Qty 1
$23.12
Available Shipping quote or pickup
13
TFIX011370
Bolt, M6X23Mm, Hex Cap Head
Qty 3
$1.99
Available
14
TFIX051834
Bearing, 15X32X9Mm, STL, White
Qty 4
$9.12
Available
15
TCHS021444
Forks, Coil, L-335, STL, White
Qty 1
$125.00
Available
16
TCHS112348
Chain, ADJ, 1 PC, 9Mm, STL, Blk
Qty 1
$18.75
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
